STR-P711
Development board FOR STR711 ARM7TDMI-S microcontroller
| Price | 51.95 EUR |
|---|---|
| 10 - 49 pcs | 46.76 EUR |
| 50 - 10000 pcs | 41.56 EUR |
FEATURES
- MCU: STR711FR2T6 16/32 bit ARM7TDMI™ with 256K Bytes Program Flash, 64K Bytes RAM, USB 2.0, RTC, 12 bit ADC, 4x UARTs, 2x I2C,2x SPI, 5x 32bit TIMERS, 2x PWM, 2x CCR, WDT, up to 50MHz operation
- Standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG
- USB connector
- Two channel RS232 interface and drivers
- SD/MMC card connector
- Two buttons
- Trimpot connected to ADC
- Two status LEDs
- Buzzer
- UEXT - 10 pin extension connector for Olimex addon peripherials like MP3, RF2.4Ghz, RFID etc. modules
- 2x SPI connectors
- I2C connector
- On board voltage regulator 3.3V with up to 800mA current
- Single power supply: 6V AC or DC required, USB port can power the board
- Power supply LED
- Power supply filtering capacitor
- RESET circuit
- RESET button
- 4 Mhz crystal oscillator
- 32768 Hz crystal and RTC backup battery connector
- Extension headers for all uC ports
- PCB: FR-4, 1.5 mm (0,062"), soldermask, silkscreen component print
- Dimensions: 120 x 80 mm (4.7 x 3.15")
HARDWARE

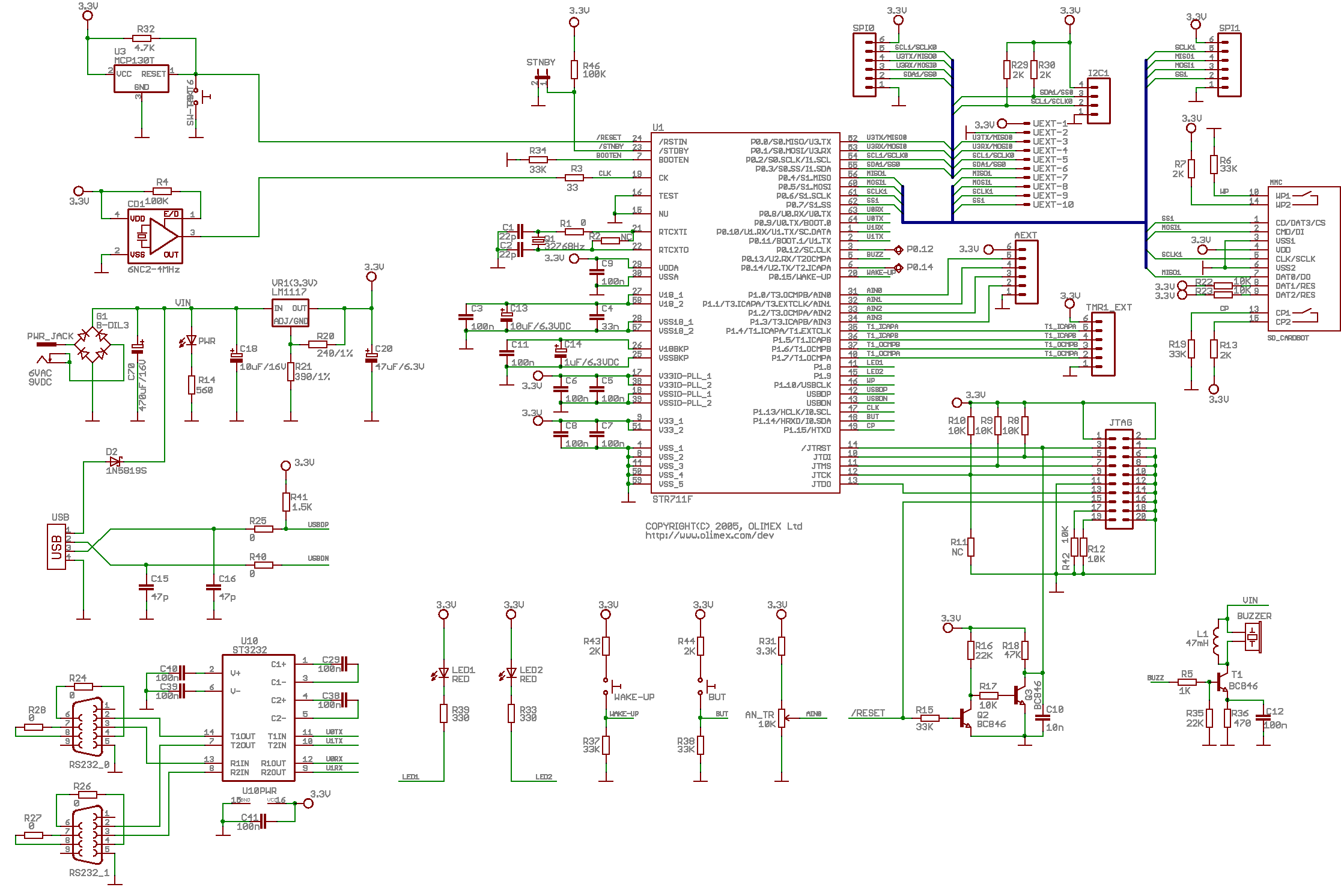

- STR-P711 Schematic Revision A

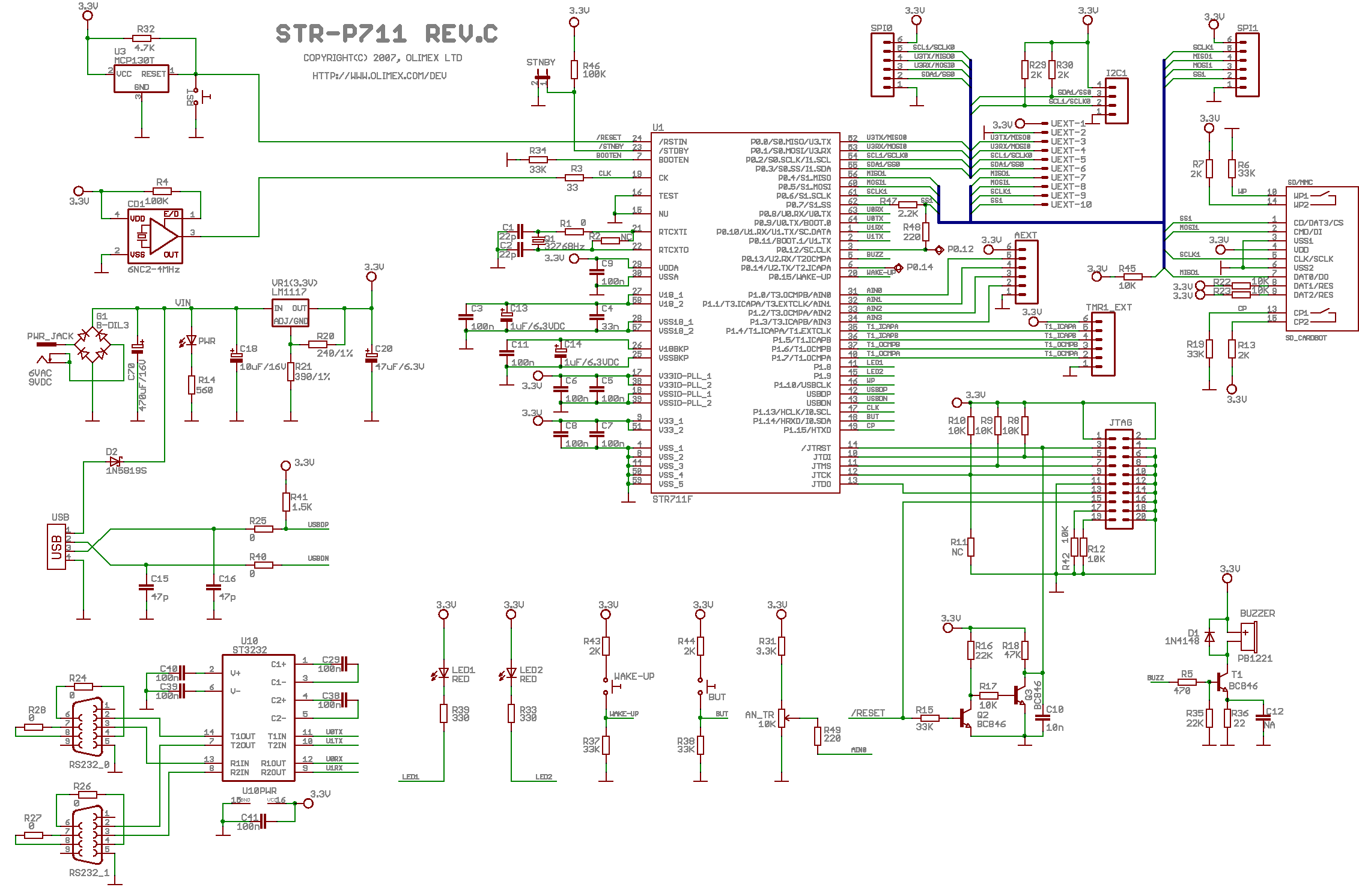

- STR-P711 Schematic Revision C
SOFTWARE
- Buttons and LEDs
- Sample mouse driver with STR711
- UART routines
- SD/MMC read/write routines
- button read, potentiometer ADC read
- OpenOCD + Eclipse set of projects 1.00 includes a make file writte in flash for STR-H711. The complete list of projects included is here.
