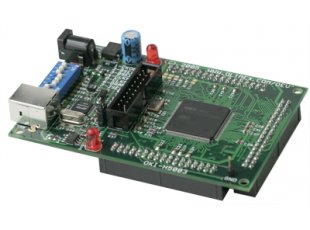

Header board for oki ML67Q5003 microcontroller
Price89.95 EUR
10 - 49 pcs80.96 EUR
50 - 10000 pcs71.96 EUR
In Stock


  • MCU: ML67Q5003 ARM7TDMI 16/32-bit RISC CPU, 512KB internal Flash, 32KB internal SRAM, 8KB cache memory, Built-in external memory controller supports external SRAM, SDRAM, EDO DRAM, Flash, 28 interrupt sources, DMA: 2 channels with external access, Timers: 7 16-bit timers, Watch-Dog Timer: dual stage 16 bit, PWM: Two 16-bit channels, Serial Interfaces: SIO, UART, USART, I2C, GPIO: 42 bits, A/D Converter: Four 10-bit channels, Built-in boot ROM accommodates in-circuit Flash ROM re-programming and field-updates
  • SDRAM 16MB (8MB x 16bit) 7.5 ns / 166Mhz (allows to run uclinux)
  • Flash 8MB (4MB x16 bit) 80 ns (enough to store uclinux boot image)
  • SRAM 512KB (256KB x16 bit) 10 ns
  • 7.5 Mhz crystal oscillator (PLL=4 60Mhz)
  • JTAG connector
  • USB-RS232 convertor
  • Status LED
  • RESET supervisor IC and button
  • EXTENSION IDC34 connectors for all uC ports
  • USB-RS232 converter connected to UART0
  • Power supply can be from USB port or external
  • Power supply LED
  • 8 position slide switch for uC configuration
  • PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print

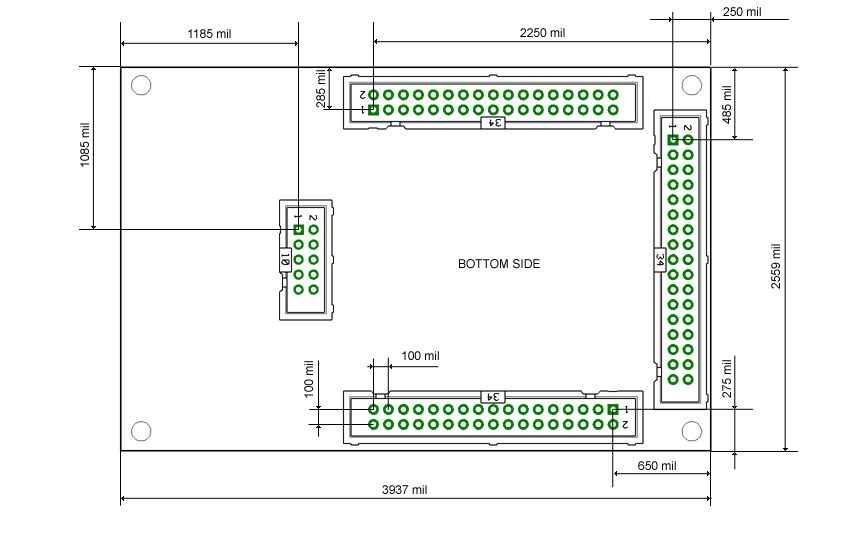

  • Dimensions 100x65 mm (3.9 x 2.5 ")
