LPC-P2106

LPC-P2106

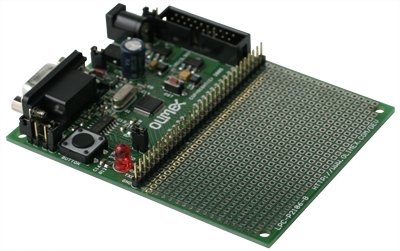

Prototype board for LPC2106 ARM microcontroller
Price46.95 EUR
10 - 49 pcs42.26 EUR
50 - 10000 pcs37.56 EUR
In stock

FEATURES

  • MCU: 16/32 bit LPC2106 with 128K Bytes Program Flash, 64K Bytes RAM, RTC, 2x UARTs, I2C, SPI, 2x 32bit TIMERS, 7x CCR, 6x PWM, WDT, 5V tolerant I/O, up to 60MHz operation
  • JTAG connector as per ARM's 2x10 pin layout, ARM-JTAG (Wiggler) compatible
  • extension header for uC pins
  • 14.7456 Mhz crystal allow easy communication setup (4x PLL = 58,9824 Mhz CPU clock)
  • RS232 interface circuit
  • RESET circuit
  • RESET button
  • DEBUG jumper for JTAG enable/disable
  • BSL jumper for bootloader enable/disable
  • RTCK pullup resistor
  • Push BUTTON with pullup
  • Status LED
  • Power plug-in jack
  • Single power supply: +5-9VAC/DC required
  • Two on board voltage regulators 1.8V and 3.3V with up to 800mA current
  • Power supply filtering capacitor
  • PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
  • Prototype PCB area with +3.3V and GND bus
  • Dimensions: 100x77 mm (3.9x3.05")
  • Four mounting holes
