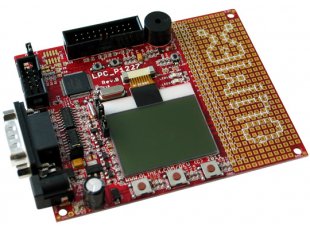

LPC-P1227
DEvelopment prototype board for LPC1227 CORTEX M0 ARM microcontroller
| Price | 20.95 EUR |
|---|---|
| 10 - 49 pcs | 18.86 EUR |
| 50 - 10000 pcs | 16.76 EUR |
FEATURES
- MCU: LPC1227 Cortex-M0, up to 45Mhz, 128 kB Flash, 8kB SRAM, 2 UARTs , SPI, I2C, 10 bit ADC
- RS232
- Buzzer
- NOKIA 3310 LCD
- 12 MHz crystal resonator
- Power supply circuit
- Power-on led
- Debug interface – SWD (Serial Wire Debug)
- UEXT connector
- Two user leds
- Three user buttons
- Reset button
- Prototype area
- FR-4, 1.5 mm, soldermask, component print
- Dimensions:80x50mm (3.15 x 1.97")
DOCUMENTS
HARDWARE
- LPC-P1227 Schematic Revision B
- ARM JTAG connector (TOP view)
SOFTWARE
- LPC-P1227 demo examples project
