LPC-P1114

LPC-P1114
LPC-P1114 LPC-P1114

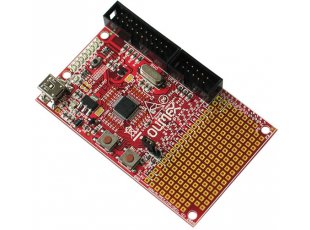

Development prototype board for LPC1114 CORTEX M0 ARM microcontroller
Price11.95 EUR
10 - 49 pcs10.76 EUR
50 - 10000 pcs9.56 EUR
In stock

FEATURES

Microcontroller

  • LPC1114 Cortex-M0, up to 50 Mhz
  • 32 kB Flash, 8kB SRAM,
  • UART RS-485, two SSP, I2C/Fast+
  • 42 GPIO pins,
  • 4 TIMERS/COUNETRS, CAPTURE,
  • WDT
  • Serial Wire Debug.
  • High-current output driver (20 mA) on one pin.
  • High-current sink drivers (20 mA) on two I2C-bus pins in Fast-mode Plus.
  • Integrated Power Management Unit, Three reduced power modes: Sleep, Deep-sleep, and Deep power-down.
  • Single 3.3 V power supply (2.0 V to 3.6 V).
  • 10-bit ADC with input multiplexing among 8 pins.
  • GPIO pins can be used as edge and level sensitive interrupt sources.

Board

  • MCU: LPC1114 Cortex-M0, up to 50 Mhz, 32 kB Flash, 8kB SRAM, UART RS-485, two SSP, I2C/Fast+, ADC
  • Power supply circuit
  • Power-on led
  • USB connector only for power supply, not USB functionality
  • Debug interface – SWD (Serial Wire Debug)
  • UEXT connector
  • Eight user leds
  • Two user buttons
  • Reset button
  • Prototype area
  • FR-4, 1.5 mm, soldermask, component print
  • Dimensions:80x50mm (3.15 x 1.97")

HARDWARE

SOFTWARE

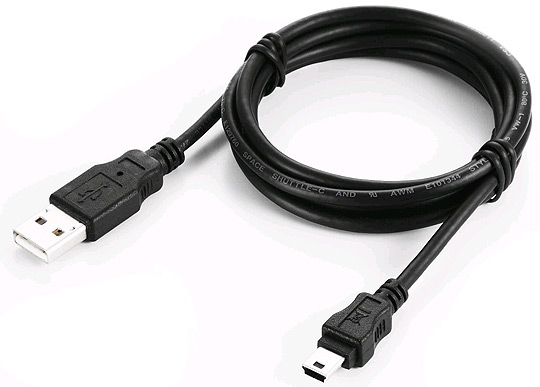

Related Products
