LPC-H2214 LPC-H2214 LPC-H2214
Header board for LPC2214 ARM7TDMI-S microcontroller with 1MB SRAM and 1MB flash memory
Price39.95 EUR
10 - 49 pcs35.96 EUR
50 - 10000 pcs31.96 EUR
In Stock


  • MCU: LPC2214 16/32 bit ARM7TDMI-S™t with 256K Bytes Program Flash, 16K Bytes RAM, EXTERNAL MEMORY BUS, RTC,4x 10 bit ADC 2.44 uS, 2x UARTs, I2C, SPI, 2x 32bit TIMERS, 7x CCR, 6x PWM, WDT, 5V tolerant I/O, up to 60MHz operation
  • 1MB (256Kx32bit) 12 ns 71V416 SRAM
  • 1MB (512Kx16bit) 55ns MX26LV800BTC FLASH or 70 ns ES29LV800EB FLASH
  • Standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG
  • USB to RS232 convertor, board can take power only from USB port
  • Two on board voltage regulators 1.8V and 3.3V with up to 800mA current
  • Optional single power supply: +5VDC required if not connected to USB port
  • Power supply and status LED
  • Power supply filtering capacitor
  • Slide switch for ICSP-RUN mode
  • Slide switch for Boot mode from external internal flash
  • RESET circuit with exterman control of Philips ISP utility via USB-RS232 virtual port
  • RESET button
  • DBG jumper for JTAG enable
  • BSL jumper for bootloader enable
  • JRST jumper for enable/disable external RESET vontrol by RS232
  • Removable crystal on socket (default 14.7456 Mhz crystal installed)
  • Extension headers for all uC ports with IDC34 connectors (easy obtainable as used for HDD and Floppy on all PCs)

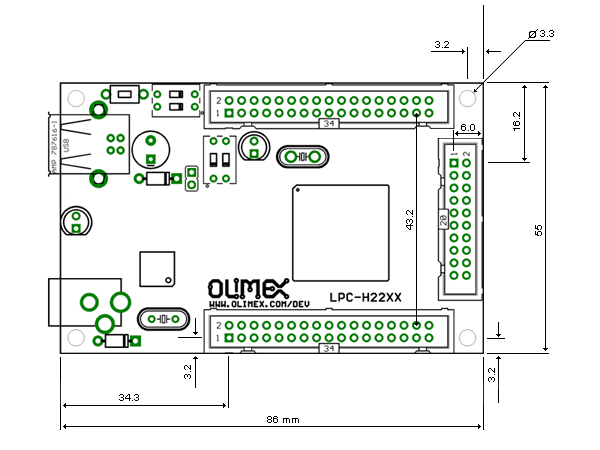

  • PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
