SAM7-P64

SAM7-P64
SAM7-P64 SAM7-P64 SAM7-P64

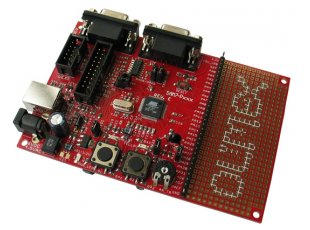

Development board for AT91SAM7S64 ARM7TDMI-S microcontroller
Price25.95 EUR
10 - 49 pcs23.36 EUR
50 - 10000 pcs20.76 EUR
In stock

FEATURES

  • MCU: AT91SAM7S64 16/32 bit ARM7TDMI™ with 64K Bytes Program Flash, 16K Bytes RAM, USB 2.0, RTT, 10 bit ADC 384 ksps, 2x UARTs, TWI (I2C), SPI, 3x 32bit TIMERS, 4x PWM, SSC, WDT, PDC (DMA) for all peripherals, up to 60MHz operation
  • Standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG
  • USB connector
  • UEXT connector
  • Two channel RS232 interface and drivers
  • SD/MMC card connector
  • Two buttons
  • Trimpot connected to ADC
  • Thermistor connected to ADC
  • Two status LEDs
  • On board voltage regulator 3.3V with up to 800mA current
  • Single power supply: 6V AC or DC required
  • Power supply LED
  • Power supply filtering capacitor
  • RESET circuit
  • RESET button
  • 18.432 Mhz crystal on socket
  • Extension headers for all uC ports
  • PCB: FR-4, 1.5 mm (0,062"), soldermask, silkscreen component print
  • Dimensions: 120 x 80 mm (4.7 x 3.15")
