SAM7-MT256

SAM7-MT256
SAM7-MT256 SAM7-MT256 SAM7-MT256 SAM7-MT256

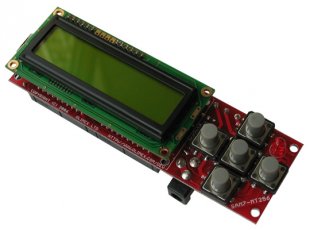

Development board for AT91SAM7S256 ARM7TDMI-S microcontroller
Price39.95 EUR
10 - 49 pcs35.96 EUR
50 - 10000 pcs31.96 EUR
In stock

FEATURES

  • MCU: AT91SAM7S256 16/32 bit ARM7TDMI™ with 256K Bytes Program Flash, 64K Bytes RAM, USB 2.0, RTT, 10 bit ADC 384 ksps, 2x UARTs, TWI (I2C), SPI, 3x 32bit TIMERS, 4x PWM, SSC, WDT, PDC (DMA) for all peripherals, up to 60MHz operation
  • Standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG
  • USB connector
  • LCD 16x2 with backlight
  • RS232 interface and driver
  • Relay 10A/250VAC
  • Buzzer
  • 5 buttons
  • Status LED
  • On board voltage regulator 3.3V with up to 800mA current
  • Single power supply: 12V AC or DC required
  • Power supply filtering capacitor
  • RESET circuit , RESET button
  • 18.432 Mhz crystal on socket
  • Extension headers for all uC ports
  • PCB: FR-4, 1.5 mm (0,062"), soldermask, silkscreen component print
  • Dimensions: 120 x 38 mm (4.7 x 1.5")
