Development prototype board for ADuC7026 ARM7 microcontroller
Price35.95 EUR
10 - 49 pcs32.36 EUR
50 - 10000 pcs28.76 EUR
In Stock

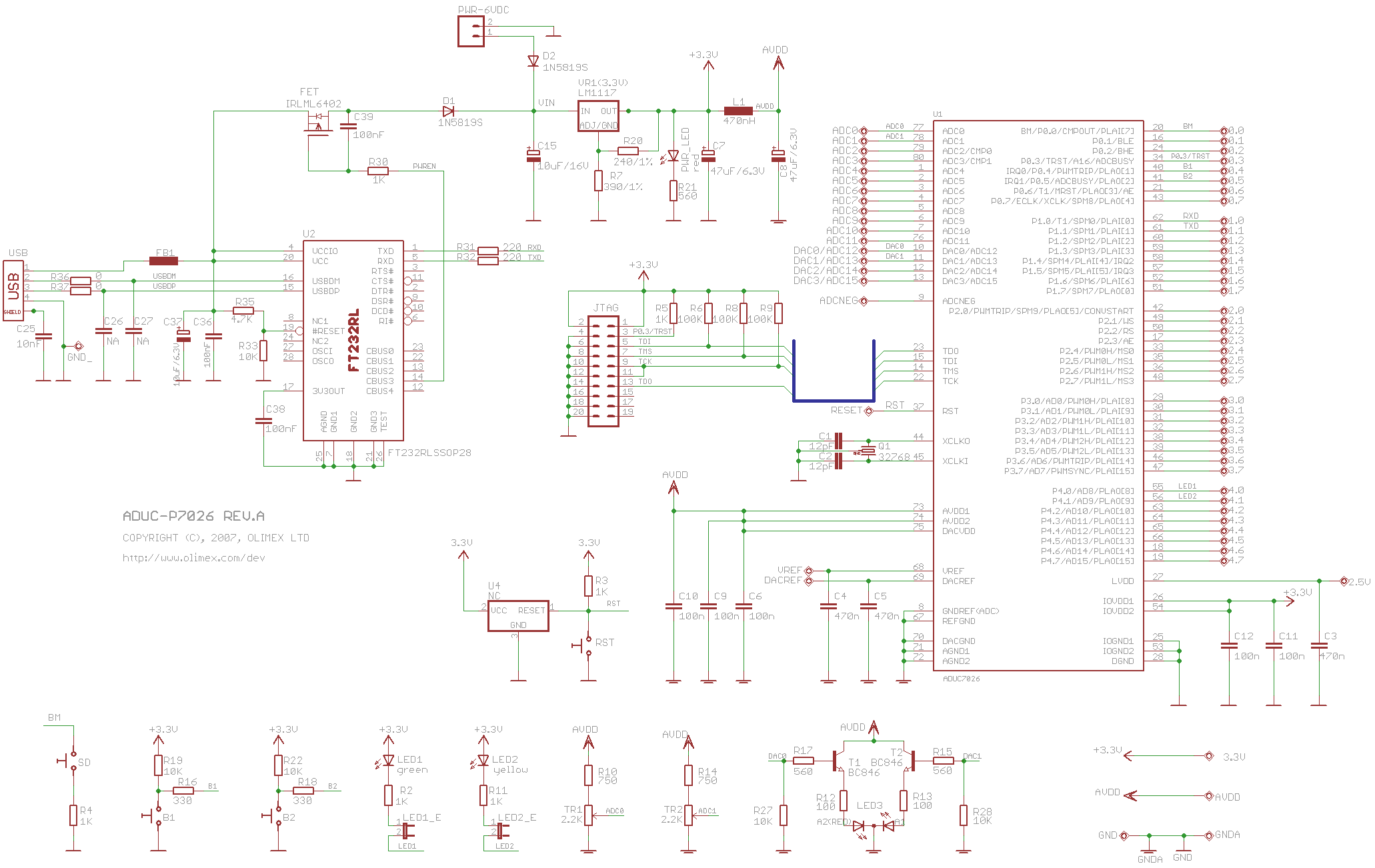

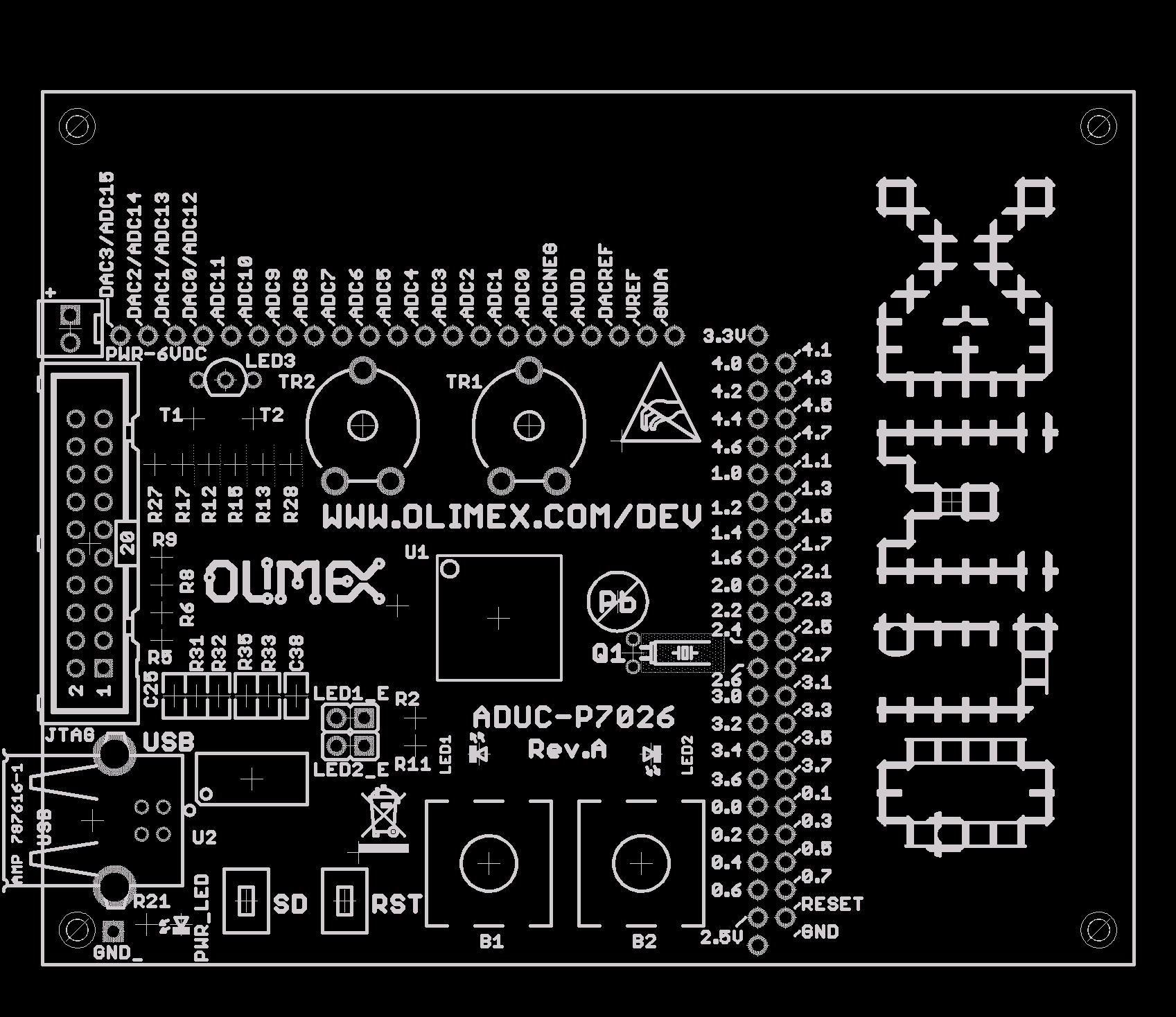

ADuC-P7026 is a low-cost development board for Analog Devices ADuC7026 ARM7 microcontroller. Among the unique features for this microcontroller are the 1Msps ADCs and DACs, 3 phases PWM module which are not available from other ARM vendors. ADuC7026 have build in bootloader which could be used to load code in the microcontroller without need for external programmer.


  • MCU: ADuC7026 16/32 bit ARM7TDMI-S™ with 64K Bytes Program Flash, 8K Bytes RAM, 12 channel 12 bit ADC with 1Msps, 4 channels 12 bit DACs, on chip Vref, on-chip temperature sensor, UARTs, 2x I2C, SPI, Three phase PWM, PLA programmable logic, external memory interface, 2x 32bit TIMERS, WDT, 5V tolerant I/O, up to 45MHz operation
  • ARM JTAG 2x10 pin connector
  • RESET circuit
  • USB-RS232 converter
  • Two status LED
  • Two buttons
  • Two trimmer potentiometers connected to ADC inputs
  • Bi-color LED connected to two DACs
  • SD and RESET buttons for easy bootloader enable
  • Power supply LED
  • On board voltage regulator 3.3V with up to 800mA current
  • Power supply filtering capacitor
  • Powered from USB port no need for external power supply adapter
  • Connector for external power supply if USB is not present
  • 32768 Hz crystal
  • Extension headers for all microcontroller ports
  • Prototype area with split analogue and digital area
  • PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
  • Dimensions: 100x80 mm (3.9x3.15")
