BB-L298

BB-L298 - Open Source Hardware Board
BB-L298 - Open Source Hardware Board BB-L298 - Open Source Hardware Board
Dual full bridge driver
Price9.00 EUR
10 - 49 pcs8.10 EUR
50 - 10000 pcs7.20 EUR
In stock

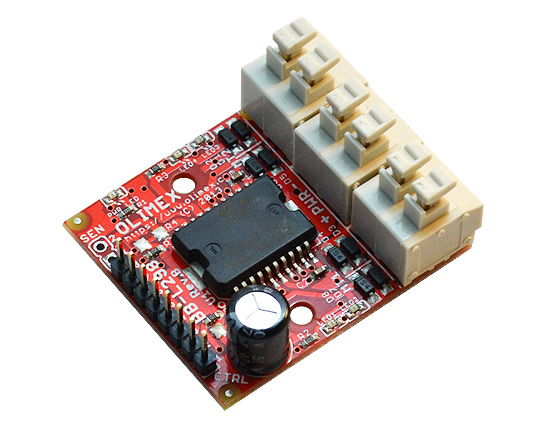

BB-L298 is dual full bridge driver with up to 2.5A and 7-40V working voltage. It is good to drive Gear Robot motors with reversal function. STATUS LEDs visualize power supply and driver direction. The power connectors are spring type for quick connect disconnect. Inductive load protection diodes are included.

FEATURES

  • Up to 2.5A loads
  • 7-40VDC power supply
  • STATUS PWR LED
  • STATUS direction LEDs for both channels
  • Can work with 5V Arduino boards
  • Suitable for the motors of OLIMEX robot wheels like MG gear motor
  • Able to drive two motors
