BATTERY-LIPO6600mAh

BATTERY-LIPO6600mAh

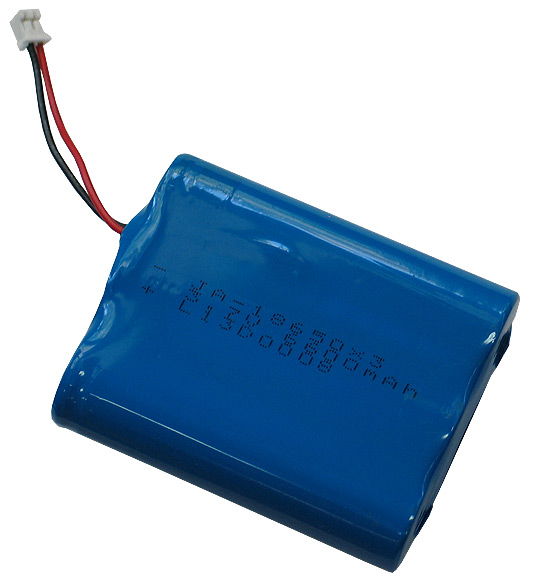

Rechargable LI-PO battery 3.7V 6600mAh with JST connector
Price11.95 EUR
10 - 49 pcs10.76 EUR
50 - 10000 pcs9.56 EUR
In stock

This is a rechargeable Li-Po high discharge current battery with JST connector ready to plug to:
OLIMEXINO-328, OLIMEXINO-STM32, PIC32-PINGUINO, PIC32-PINGUINO-OTG, DUINOMITE and DUINOMITE-MEGA

The battery has overcharge and short circuit protection.

FEATURES

  • Charge voltage 4.2V, nominal voltage 3.7V, cut-off voltage 3.0V
  • Recommended charge current 1320mAh
  • Max charge current 3300mAh
  • Recommended discharge current 3300mAh
  • Max discharge current 6600mAh
  • Impedance 60mOhm at 1KHz
  • Operating temperature: at charge 0-55C, at discharge -25C+60C
  • Capacity loss after 500 cycles full charge/discharge at 20C: 20%
  • Dimensions 68 x 54 x 18 mm
