BATTERY-LIPO4400mAh

BATTERY-LIPO4400mAh

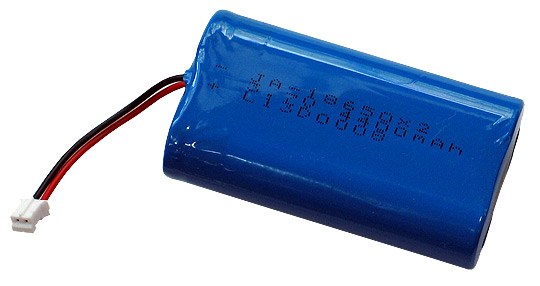

Rechargable LI-PO battery 3.7V 4400mAh with JST connector
Price8.95 EUR
10 - 49 pcs8.06 EUR
50 - 10000 pcs7.16 EUR
In Stock

This is a rechargeable Li-Po high discharge current battery with JST connector ready to plug to:
OLINUXINO, OLIMEXINO-328, OLIMEXINO-STM32, PIC32-PINGUINO, PIC32-PINGUINO-OTG, DUINOMITE and DUINOMITE-MEGA

The battery has overcharge and short circuit protection.

FEATURES

  • Charge voltage 4.2V, nominal voltage 3.7V, cut-off voltage 3.0V
  • Recommended charge current 880mA
  • Max charge current 2200mA
  • Recommended discharge current 2200mA
  • Max discharge current 4400mA
  • Impedance 60mOhm at 1KHz
  • Operating temperature: at charge 0-55C, at discharge -25C+60C
  • Capacity loss after 500 cycles full charge/discharge at 20C: 20%
  • Dimensions 68 x 37 x 18 mm
