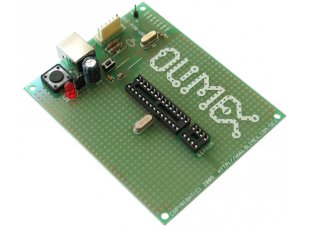

ICSP/ICD enabled 28 pin PIC microcontroller prototype board with USB
Price22.95 EUR
10 - 49 pcs20.66 EUR
50 - 10000 pcs18.36 EUR
In stock

This board was designed to allow easy interfacing of embedded projects to computers with a USB. The F232 USB-to-RS232 converter IC creates a virtual "COM" port to the PC and you can easily send and receive date using the good old fashioned RS232 interface in the PIC microcontroller.


  • Supports all 28-pin PIC microcontrollers in PDIP package (but NOT SPDIP package!)
  • ICSP/ICD connector with 0.1'' step for programming or debugging
  • USB to RS232 FT232 converter
  • I2C EEPROM socket
  • Takes power from USB no need for external adapter
  • Power supply filtering capacitors
  • Quartz crystal oscillator circuit 20Mhz
  • Reset button
  • General purpose push button connected to RA5
  • Status LED connected to RA2 via removable jumper
  • DIL28 microcontroller socket
  • Extension pin headers for each uC pin
  • Four mounting holes 3.3 mm (0.13")
  • Grid with 100 mils step
  • GND bus
  • Vcc bus
  • FR-4, 1.5 mm (0,062"), red soldermask, white silkscreen component print
  • Dimensions 100x80 mm (3.9x3.15")



  • Blink LED for PIC16F876 demo code (C source and HEX)
  • Button read for PIC16F876 demo code (C source and HEX)
  • RS232 send/receive for PIC16F876 demo code (C source and HEX)
