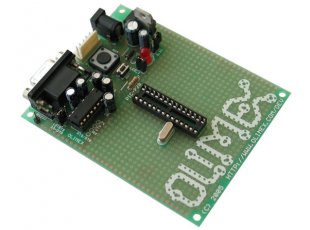

Development prototype board for 28 pin PIC microcontrollers
Price4.95 EUR
10 - 49 pcs4.46 EUR
50 - 10000 pcs3.96 EUR
In stock

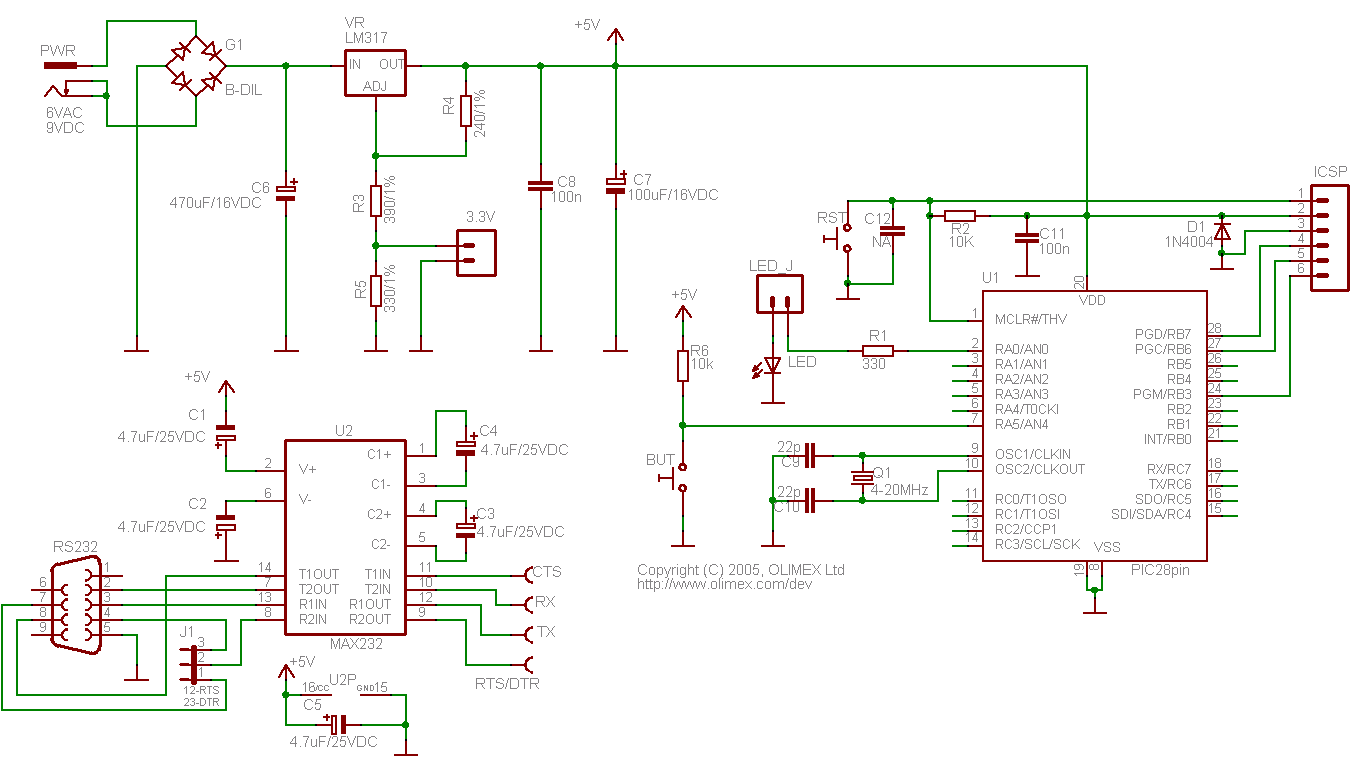

With this board you can develop and prototype with all Microchip's SPDIP28 PIC microcontrollers. The RS232 driver on board allows for an easy connection with a PC or other embedded hardware. The board has an user button and a status LED. The bridge rectifier allows this board to be powered with both AC and DC power supply adapters. PIC-P28 supports both 3V low power and normal 5V operation.

FEATURES

  • ICSP/ICD connector with 0.1'' step for programming or debugging
  • RS232 Tx, Rx interface with MAX232 IC on socket
  • Supports all 28-pin PIC microcontrollers in SPDIP package 300 mil
  • Quartz crystall 20Mhz
  • LED to RA0 through jumper
  • User button on RA5 port
  • Reset button
  • Power plug-in jack
  • Selectable +3.3V / +5V power supply voltage regulator
  • Extension slot on every uC pin
  • Grid with 100 mils step
  • GND bus
  • Vcc bus
  • Four mounting holes 3,3 mm (0,13")
  • FR-4, 1.5 mm (0,062"), red soldermask, white silkscreen component print
  • Dimensions 100x80 mm (3,9x3,15")

SOFTWARE

  • Blink LED for PIC16F876 demo code (C source and HEX)
  • Button read for PIC16F876 demo code (C source and HEX)
  • RS232 read/write for PIC16F876 demo code (C source and HEX)
