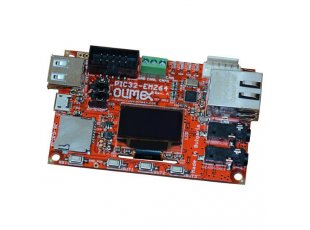

PIC32-EMZ64
PIC32-EMZ64 is a development board with PIC32MZ2048EFH064
Open Source HardWare board with PIC32 processor
| Price | 59.95 EUR |
|---|---|
| 10 - 49 pcs | 56.95 EUR |
| 50 - 10000 pcs | 53.96 EUR |
FEATURES
- PIC32MZ2048EFH064-I/PT processor (2048KB flash; 512KB RAM)
- LCD OLED display - 128x64 pixels
- Ethernet interface 100Mb with connector
- microSD card interace with connector
- ICSP interface for debugging and programming
- Two USB connectors - USB type A and micro USB (USB OTG or USB host modes)
- Microphone jack (audio input interface)
- Headphones jack (audio output interface)
- CAN interface with driver and connector
- UEXT expansion connector
- Reset button
- Three user-programmable buttons
- Power-on LED
- Three user-programmable LEDs
- Power supply pads exposed
- GND pin exposed
- Mounting holes provided
- Operating temperature range: (0 - 70)°C ~ (32 - 158)°F
- PCB dimensions: (80 x 50)mm ~ (3.15 x 1.97)"
DOCUMENTS
HARDWARE
- PIC32-EMZ64 latest schematic in .pdf format
- PIC32-EMZ64 schematic and board design sources for Eagle CAD

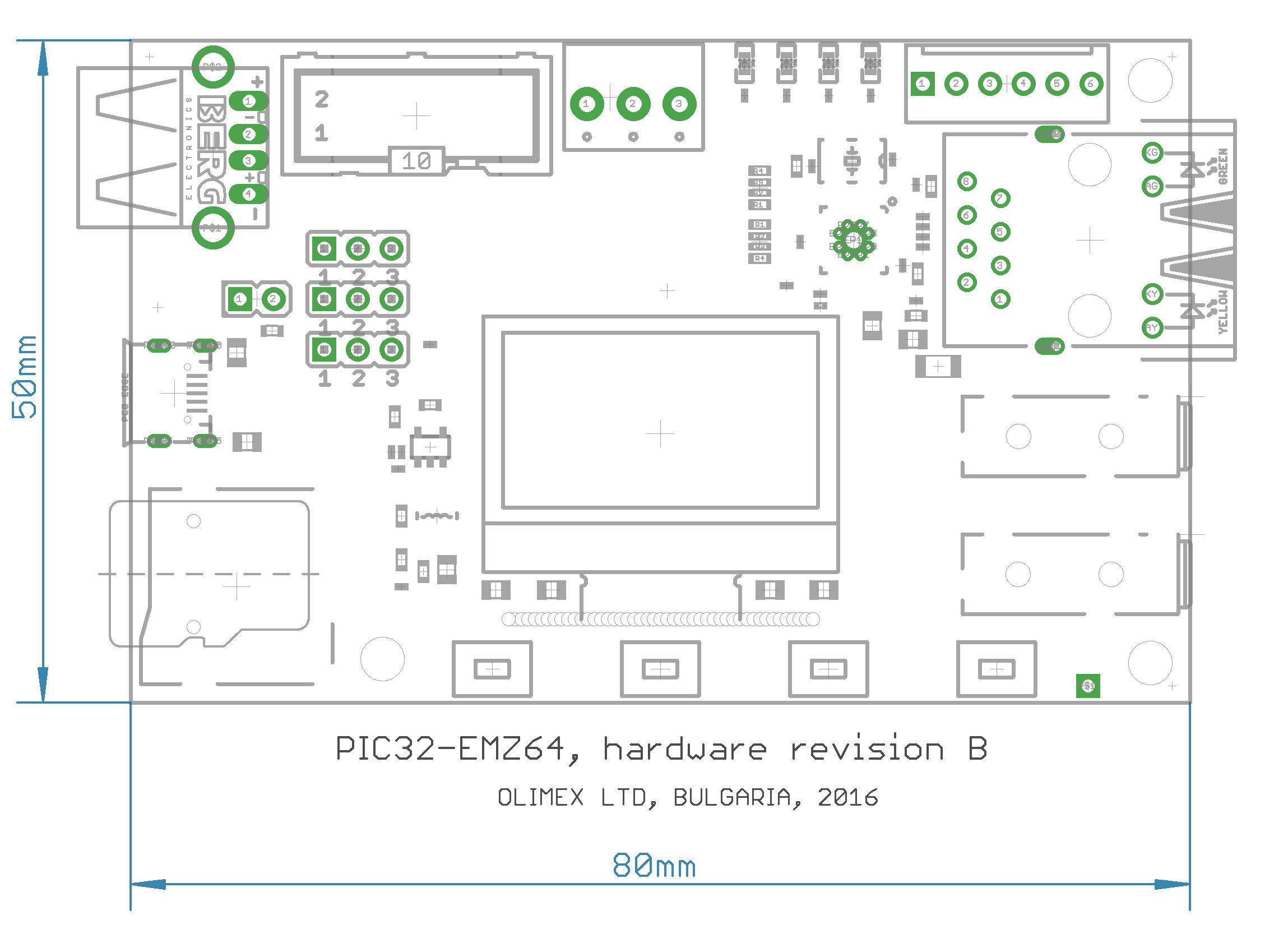

- PIC32-EMZ64 dimensions png picture format
