IMX8QM-TUKHLA

IMX8QM-TUKHLA - Open Source Hardware Board
IMX8QM-TUKHLA - Open Source Hardware Board IMX8QM-TUKHLA - Open Source Hardware Board
NXP iMX8QuadMax Octa Core SOC Linux Board
Price1.00 EUR
Out of stock

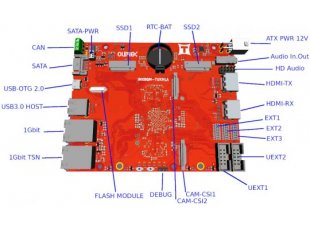

IMX8QM-TUKHLA is Open Source Hardware Linux computer with NXP most powerful IMX8 SOC MIMX8QM5AVUFFAB.

FEATURES

  • Dual Core Cortex-A72 @1.6Ghz
  • Quad Core Cortex-A53 @1.2GHz
  • Dual Core CortexM4F @268Mhz
  • 64-bit LPDDR4 @1600 MHz
  • GPU 16× Vec4 shaders with 64 execution units
  • VPU H.265 decode (4Kp60)
  • 2× H.264 encode (1080p30)
  • HDMI Rx
  • HDMI Tx 4K
  • 2x LVDS
  • 2x MIPI DSI
  • 2xMIPI CSI
  • 1× PCIe (2-lanes).
  • USB3.0
  • 2x USB2.0
  • SATA3.0
  • 2× 1Gb Ethernet
  • 3× CAN/CAN-FD

DOCUMENTS

HARDWARE

  • iMX8QM-Tukhla schematic in PDF forma
  • iMX8QM-Tukhla KiCad design files

SOFTWARE

  • NXP Linux BSP
  • Android image
