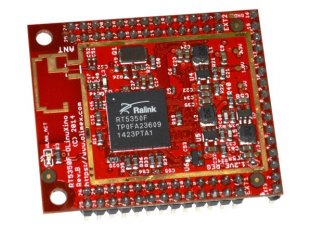

RT5350F-OLinuXino

RT5350F-OLinuXino - Open Source Hardware Board
RT5350F-OLinuXino - Open Source Hardware Board RT5350F-OLinuXino - Open Source Hardware Board
Open Source Hardware Embedded MIPS Linux Single Board Computer with RT5350F SoC 2.4Ghz WIFI 801.11n 150Mb x5 100Mb Ethernet ports
Price15.00 EUR
10 - 49 pcs13.50 EUR
50 - 10000 pcs12.00 EUR
In stock

FEATURES

  • RT5350 SoC – Ralink’s IEEE 802.11n draft compliant 1T1R MAC/BBP/PA/RF; 360 MHz MIPS24KEc CPU core; a 5-port integrated 10/100 Ethernet switch/PHY and a USB
  • 32MB SDRAM
  • 8MB SPI NAND Flash
  • On-board antenna
  • WLAN activity LED
  • Power LED

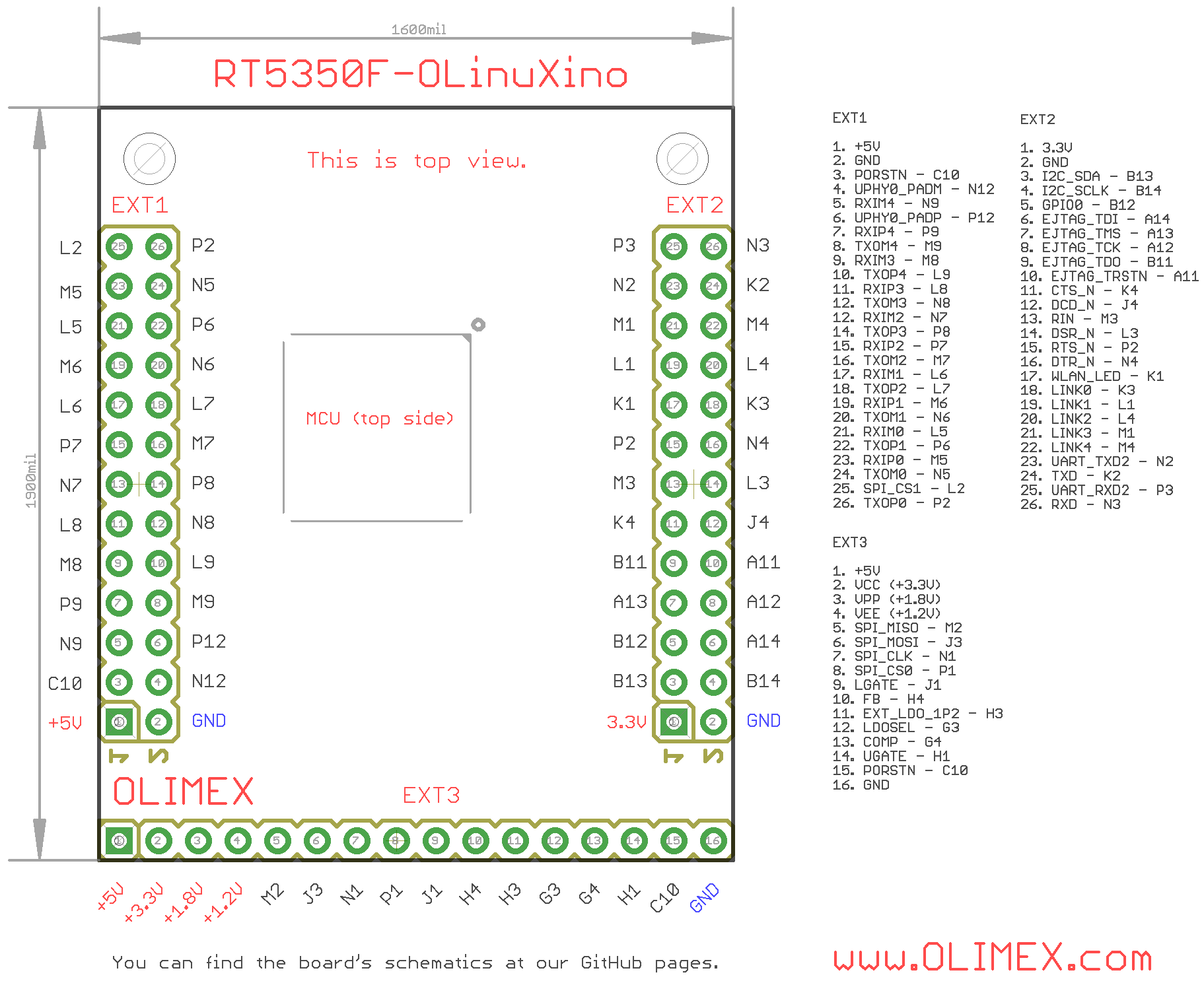

  • x3 external connectors at convenient 0.1" step with all RT5350F signals
  • x3 external DCDC power converters releasing internal RT5350F vreg and preventing common problem with overheating with this chip.
  • Two mounting holes
  • Suitable for embedding
  • Operating temperature: -10+55C
  • Size: (1600 x 1900)mils ~ (41 x 48)mm

HARDWARE

SOFTWARE

  • preloaded OpenWRT with Linux Kernel 3.18.17

COMMUNITY
