LIME2-SHIELD

LIME2-SHIELD - Open Source Hardware Board
LIME2-SHIELD - Open Source Hardware Board LIME2-SHIELD - Open Source Hardware Board LIME2-SHIELD - Open Source Hardware Board
LIME2-SHIELD with CAN, Audio IN OUT, sd-card, UEXT, GPIO
Price6.95 EUR
10 - 49 pcs6.60 EUR
50 - 10000 pcs6.26 EUR
In stock
LIME2-SHIELD is OSHW certified Open Source Hardware with UID BG000073

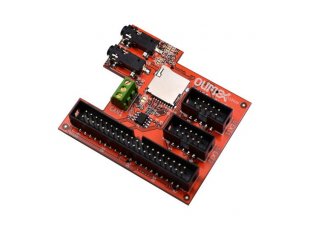

LIME2-SHIELD is a shield for A20-OLinuXino-LIME2 which adds two UEXT connectors, micro SD card, audio input and output, CAN driver with connector, and 40 pin GPIO connector.

FEATURES

  • Shield for A20-OLinuXino-LIME2
  • Micro SD card
  • Audio input
  • Audio output
  • CAN
  • UEXT1 and UEXT2
  • GPIO connector with 0.1" step
  • Dimensions: (65 x 60)mm ~ (2.55 x 2.36)"

SOFTWARE

Demo examples in the user manual:
  • GPIO demo code for shell
  • GPIO demo code in C
  • GPIO demo code in Python
  • I2C demo for shell
  • I2C demo code in C
  • I2C demo code in Python
  • CAN demo code for shell
  • CAN demo code in C
  • SPI demo code in Python
  • SPI demo code in C
