MOD-OLED-128x64

MOD-OLED-128x64 - Open Source Hardware Board
MOD-OLED-128x64 - Open Source Hardware Board MOD-OLED-128x64 - Open Source Hardware Board MOD-OLED-128x64 - Open Source Hardware Board
OLED display module for UEXT with 27x11mm size and I2C control
Price5.50 EUR
10 - 49 pcs4.95 EUR
50 - 10000 pcs4.40 EUR
In stock

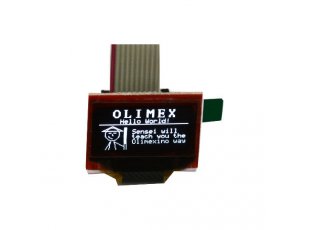

MOD-OLED-128x64 is low cost, low power, high contrast LCD display with UEXT connector. You can control it via I2C. The power supply required is only in range 1 uA in sleep mode, 200 uA in operating mode and 7mA in display ON mode. View area is 21 x 11 mm. 4 pin header is provided and can be soldered by user to use MOD-OLED-128x64 with breadboard.

FEATURES

  • UEXT connector
  • UEXT female-female cable included
  • 4 pin header for breadboard
  • 27x11 mm view area
  • High contrast
  • I2C controllable
  • 3.3V power supply line (4V absolute maximum)
  • 7 mA current with display ON, 1uA sleep mode
