MOD-GPS

MOD-GPS
MOD-GPS MOD-GPS
GPS module based on U-blox 7 with internal patch antenna, 2 meter cable, and an UEXT connector
Price19.95 EUR
10 - 49 pcs17.96 EUR
50 - 10000 pcs15.96 EUR
In stock

Our new MOD-GPS supports GLONASS, has better sensitivity, and can be powered from 1.8V to 5V. Based on U-blox 7 UBX-G7020-KT chipset. Power consumption is 45-50 mA.

FEATURES

  • U-blox 7 UBX-G7020-KT chipset
  • GPS & QZSS L1 C/A, GLONASS L1OF,
    SBAS: WAAS, EGNOS, MSAS;
  • 56-channel u-blox 7 engine;
  • Cold/Warm/Hot start time: 29/2/1 sec. (average)
  • Reacquisition time: 0.1 sec.
  • Superior sensitivity: -162dBm tracking
  • Ultra low power design (38mA, typical)
  • Frequency L1, 1575.42MHz
  • C/A Code 1.023MHz chip rate
  • Power DC 1.8 ~ 5V, typical 3.3V
  • Internal Back-up battery 3.0V, 5.5mAh, Lithium battery
  • Back-up Current 7µA typ.
  • Update Rate 10 Hz (max.)
  • Accuracy Position 5 - 25m CEP without SA
  • Velocity 0.1m/sec, without SA
  • Time 1µs synchronized to GPS time
  • Altitude <18,000m (60,000 feet)
  • Velocity <515m/sec (1,000 knots)
  • Acceleration <4G
  • Motional Jerk 20m/sec3 max.
  • GPS Protocol NMEA0183
  • Interface RS232 CMOS, 9600 bps, 8N1
  • Build-in low noise, high gain active antenna

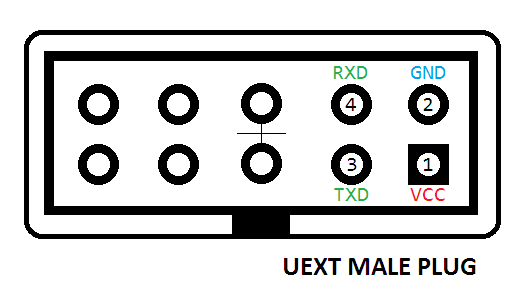

  • UEXT connector allow this device to be interfaced to all Olimex boards with UEXT connector
  • Super-cohesive magnetic for installation
  • Operating Temperature -40 °C ~ +85 °C
  • Storage Temperature -55 °C ~ +85 °C
  • Relative Humidity 5% to 90% non-condensing
  • Size: 47.0 (L) X 39.0 (W) X 16 (H) mm
  • Weight: 66.6g
