MSP430-5510STK

MSP430-5510STK
MSP430-5510STK MSP430-5510STK

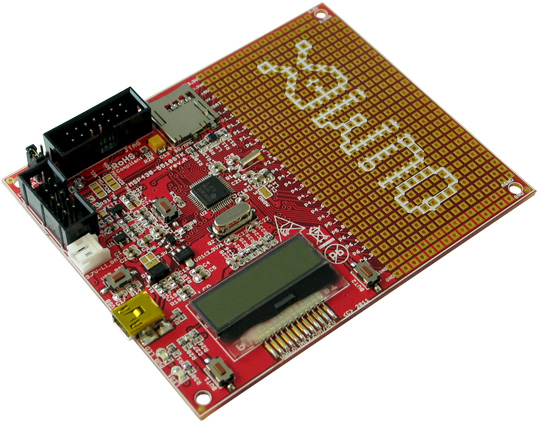

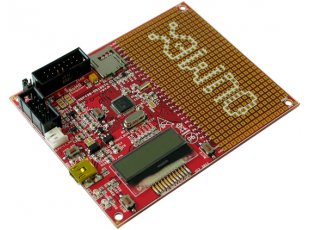

MPS430F5510 starterkit development board with LCD, UEXT, USB, SD-CARD, Battery charger
Price16.95 EUR
10 - 49 pcs15.26 EUR
50 - 10000 pcs13.56 EUR
In stock

FEATURES

  • MCU: MSP430F5510 with 32K Bytes Program Flash, 4K Bytes RAM, 25Mhz
  • LCD display 8 alphanumeric
  • Micro SD card connector
  • LiPo battery on board charger
  • USB connector, and USB bootloader support
  • Two buttons
  • 2 status LEDs
  • Access to every pin near prototype area
  • Reset button
  • UEXT connector which allow other Olimex's modules to be connected like: MOD-MP3, MOD-NRF24L01, etc.
  • JTAG connector
  • JTAG Power_In and Power_Out jumpers
  • 32 768 Hz oscillator crystal
  • 4 Mhz crystal oscillator
  • Power supply voltage regulators and filtering capacitor
  • Power on Led
  • PCB: FR-4, 1.5 mm (0,062"), soldermask, white silkscreen component print
  • Dimensions: 100x 80mm ( 3.94x 3.14")

HARDWARE
