MSP430-4619LCD

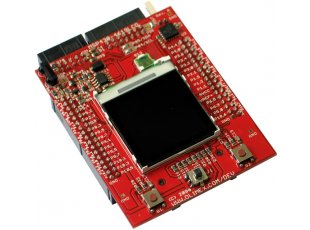

MPS430FG4619 starterkit development board with color graphics
LCD, Accelerometer, SD/MMC CARD, Joystick
| Price | 44.95 EUR |
|---|---|
| 10 - 49 pcs | 40.46 EUR |
| 50 - 10000 pcs | 35.96 EUR |
FEATURES
- MCU: MSP430FG4619 with 120K Bytes Program Flash, 256 Bytes data Flash, 4K Bytes RAM
- NOKIA 6610 LCD 128x128 pixels 12 bit color LCD with backlight
- Joystick with 4 directions and a push button function
- Two buttons
- SD/MMC card connector
- MMA7620 3 axis accelerometer
- IrDA transciever
- UEXT connector which allow other Olimex's modules to be connected like: MOD-MP3, MOD-NRF24L01, etc.
- JTAG connector
- 32 768 Hz oscillator crystal
- 8Mhz crystal oscillator
- Power supply voltage regulators and filtering capacitor
- Extension headers for all uC pins
- PCB: FR-4, 1.5 mm (0,062"), soldermask, white silkscreen component print
- Dimensions: 81x62 mm (3.19x2.44")
DOCUMENTS
HARDWARE
- MSP430-4619LCD schematic
- MSP JTAG connector (top view)
SOFTWARE
- MSP430-4619LCD demo code for GE12 LCD controller - a ball is moved by an accelerometer with the pan and tilt of the board, the demo code supports both GE8 and GE12 LCD displays, define which one is on your board in LCD.H
- MSP430-4619LCD demo code - same for GE08 LCD controller
- MSP430-4619LCD demo
- MSP430-4619LCD web page from our customer Peter Ivanov
- Labirinth game demo code
- Jim Lynch's NOKIA 6610 LCD tutorial
