MSP430-H2618

MSP430-H2618

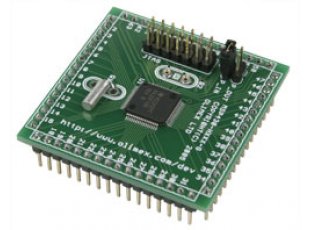

MPS430F2618 header breakout development prototype board
Price25.95 EUR
10 - 49 pcs23.36 EUR
50 - 10000 pcs20.76 EUR
In stock

FEATURES

  • MCU: MSP430F2618 with 116K Bytes Program Flash, 256 Bytes data Flash, 8K Bytes RAM
  • JTAG connector
  • JTAG Power_In and Power_Out jumpers
  • 32 768 Hz oscillator crystal
  • Optional high frequency crystal (socket)
  • TEST pin pull-down
  • RST/NMI pin pull-up
  • Power supply filtering capacitor
  • Extension headers for each uC pin
  • PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
  • Dimensions: 48x48 mm (1.9x1.9")
  • Space between the pin rows: 43.18 mm (1.7")
