PM-4040-72W

PM-4040-72W

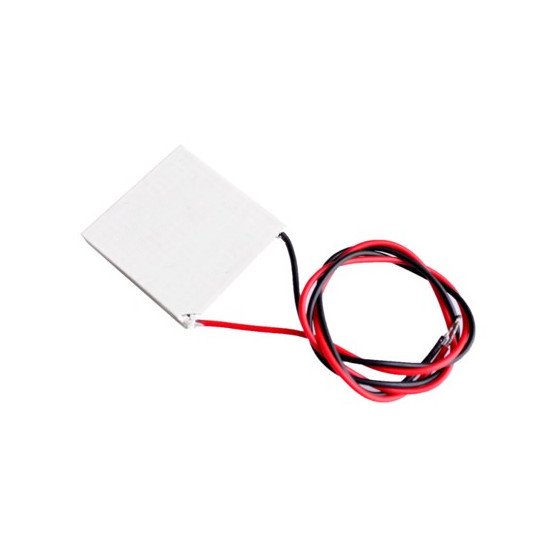

Peltier module thermo heating cooling module
Price6.00 EUR
10 - 49 pcs5.40 EUR
50 - 10000 pcs4.80 EUR
In stock

Peltier module has two ceramic plates and thermoelements between them, when power supply is applied one plate gets hot the other cold. This makes is perfect for precision cooling or heating applications like calibration of thermo components, cooling of ICs etc. It can be also used in reverse - if you have cold or/and hot sources you can generate power!

FEATURES

  • SP1848-27145 Peltier module
  • Operating temperature range: 0 to 150 degrees C
  • Maximum temperature: 150 degrees C
  • Wires length (mm): 300
  • Dimensions (mm): 40 x 40 x 3.5
  • Weight(g): 30

Power depends on the temperature difference between hot and cold side. The relation is as follows:

  • Open-circuit voltage (V): 0.97 1.8 2.4 3.6 4.8
  • Temperature diff (°): 20 40 60 80 100
  • Current (mA): 225 368 469 558 669
