CONNECTOR-GX16-4

CONNECTOR-GX16-4
CONNECTOR-GX16-4 CONNECTOR-GX16-4
Aviation metal panel connector GX16-4 with 4 pins
Price0.65 EUR
In stock
Aviation panel mount connector GX16-4. The male part is for panel mount, the female part is for cable.The connector consist of male and female part. The price is for set of male and female connector.

FEATURES

  • Rated Voltage/Current :20A /220V
  • Opreation Limit Voltage :AC 250V.rms
  • Withstand Voltage: AC 1000V
  • Insulation Resistence: Max. 1200 ohm
  • Contact Resistance :20 mOhm
  • Pin Quantity: 4 Pin

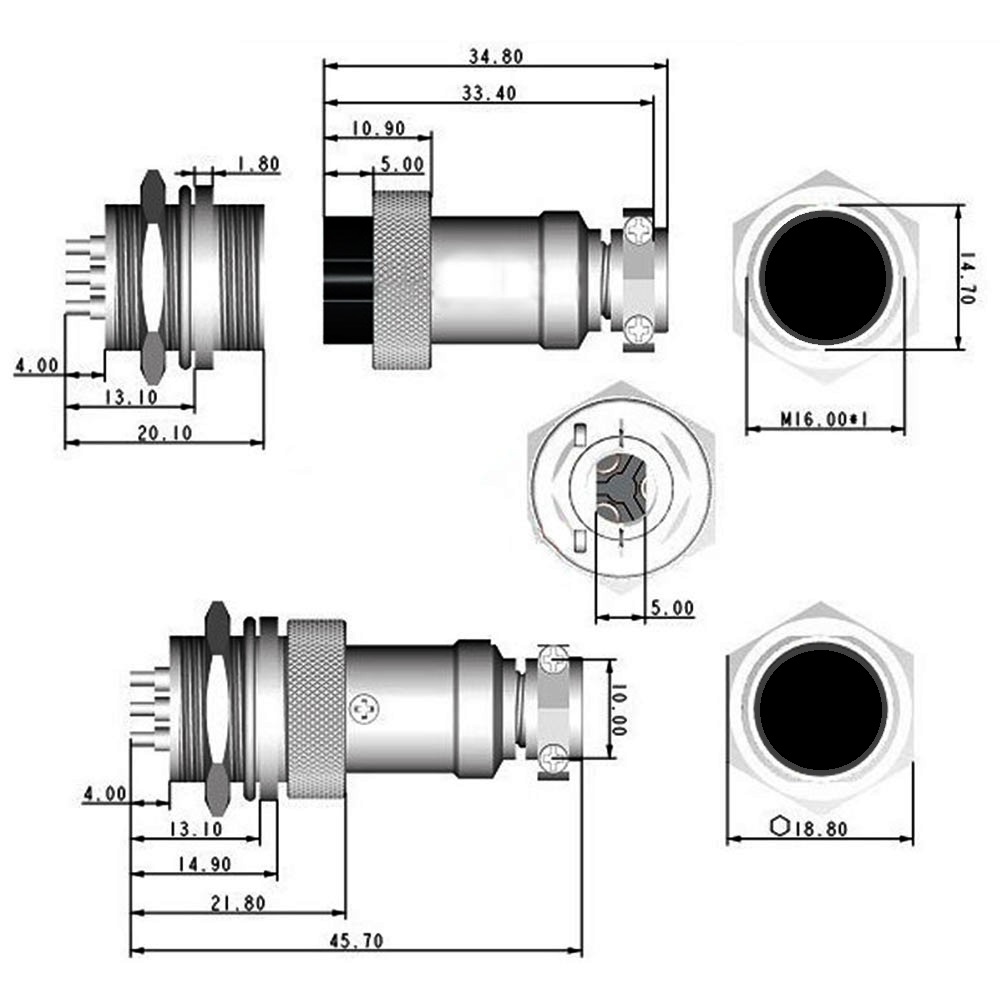

  • Mounting Thread Diameter: 16mm / 5/8"
  • Total Length :45mm / 1.8"
