AVR-P40-8535-8MHz

AVR-P40-8535-8MHz

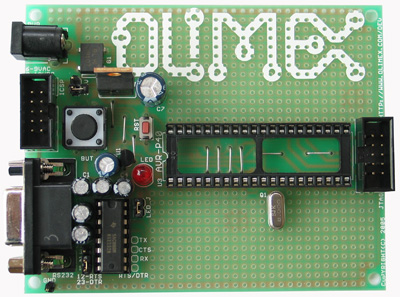

AVR microcontroller prototype board with STKxxx compatible 10 pin ICSP
Price12.95 EUR
10 - 49 pcs11.66 EUR
50 - 10000 pcs10.36 EUR
In stock

FEATURES

  • STK200 compatible ICSP 5x2 pin connector for in-circuit programming with AVR-PG1 or AVR-PG2
  • JTAG 5x2 pin connector for in-circuit programming and debugging with AVR-JTAG-USB and AVR-JTAG-L
  • RS232 Tx, Rx interface with MAX232 IC on socket
  • 8 MHz crystal on socket (user can replace with any value)
  • Reset IC ZM33064
  • Reset button
  • General purpose push button
  • Status LED connected to PB0 via removable jumper
  • DIL40 microcontroller socket
  • Power plug-in jack
  • Selectable +3.3V / +5V power supply voltage regulator
  • Extension pin headers for each uC pin
  • Four mounting holes 3.3 mm (0.13")
  • GND bus
  • Vcc bus
  • FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
  • Dimensions 100x80 mm (3.9x3.15")

SOFTWARE

  • AVR-P40-8535 + ATmega16 blink LED (C source and HEX)
  • AVR-P40-8535 + ATmega16 UART demo code (C source and HEX)
  • AVR-P40-8535 + ATMega16 Button demo code (C source and HEX)
  • AVR-P40-8535 + ATMega16 UART menu demo code (C source and HEX)
