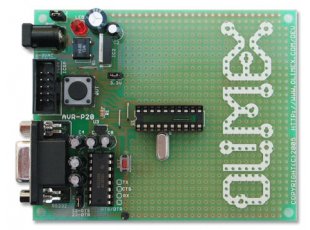

AVR microcontroller prototype board for 20 pin devices with STKxxx compatible 10 pin ICSP connector
Price4.95 EUR
10 - 49 pcs4.46 EUR
50 - 10000 pcs3.96 EUR
In Stock


  • STK200 compatible ICSP 5x2 pin connector for in-circuit programming with AVR-PG1B or AVR-PG2B
  • RS232 Tx, Rx interface with MAX232 IC on socket
  • 10MHz crystal on socket (user can replace with any value)
  • Reset IC ZM33064
  • Reset button
  • General purpose push button
  • Status LED connected to PB7 via removable jumper
  • DIL20 microcontroller socket
  • Selectable +3.3V / +5V power supply voltage regulator
  • Extension pin headers for each uC pin
  • Four mounting holes 3.3 mm (0.13")
  • FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
  • Dimensions 100x80 mm (3.9x3.15")
