OKI-E5003

OKI-E5003

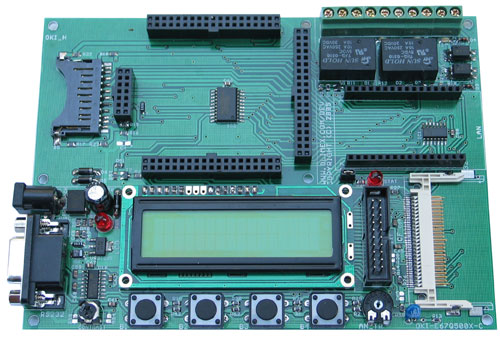

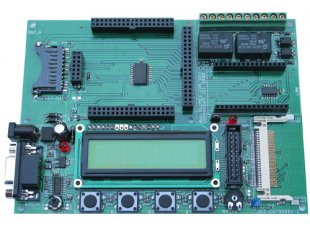

Development board for OKIML67Q5003 ARM7 microcontroller with USB, RS232, Ethernet and Compact Flash connector
Price49.95 EUR
10 - 49 pcs44.96 EUR
50 - 10000 pcs39.96 EUR
In stock

FEATURES

  • Heareds to accept OKI-H5003 processor module
  • SD/MMC card connector
  • Compact Flash (CF) connector
  • LCD 16x2 with backlight
  • Two Relays
  • Two optoisolated digital inputs
  • Status LED
  • Header to accept CS-8900A Ethernet module
  • Four buttons
  • Analog trimpot connected to ADC
  • Thermistor
  • RS232 connector and driver
  • Extension connector
  • PCB: FR-4, 1.5 mm (0,062"), soldermask, silkscreen component print
  • Dimensions: 160x115 mm (6.3 x 4.5 ")

SOFTWARE
