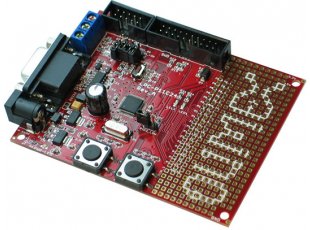

LPC-P11C24

FEATURES

Microcontroller

• LPC11C24 Cortex-M0, up to 50 Mhz
• 32 kB Flash, 8kB SRAM,
• CAN
• UART RS-485, two SSP, I2C/Fast+
• 32 GPIO pins, 4 TIMERS/COUNETRS, CAPTURE, WDT
• Serial Wire Debug interface
• High-current output driver (20 mA) on one pin.
• High-current sink drivers (20 mA) on two I2C-bus pins in Fast-mode Plus.
• Integrated Power Management Unit, Three reduced power modes: Sleep, Deep-sleep, and Deep power-down.
• Single 3.3 V power supply (2.0 V to 3.6 V).
• 10-bit ADC with input multiplexing among 8 pins.
• GPIO pins can be used as edge and level sensitive interrupt sources.



Board

• MCU: LPC11C24 Cortex-M0, up to 50 Mhz, 32 kB Flash, 8kB SRAM, CAN,UART RS-485, two SSP, I2C/Fast+, ADC
• Power supply circuit with power jack
• Power-on led
• CAN interface
• RS232 interface
• Debug interface – SWD (Serial Wire Debug)
• UEXT connector
• Two user leds
• Two user buttons
• Reset button
• Prototype area
• Variable input voltage
• FR-4, 1.5 mm, soldermask, component print
• Dimensions: 92x72mm (3.6 x 2.8")

DOCUMENTS

• LPC-P11C24 user's manual
• LPC-P11C24 European Declaration of Conformity
• LPC-P11C24 UKCA Declaration of Conformity

HARDWARE

• LPC-P11C24 schematic revision A

SOFTWARE

• LPC-P11C24 demo example
• LPC-P11C24 CAN communication example
