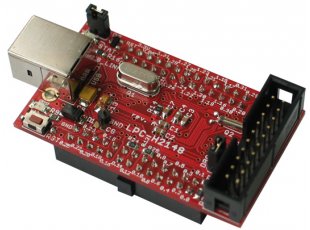

Prototype header board for LPC2148 ARM7TDMI-S microcontroller
Price34.95 EUR
10 - 49 pcs31.46 EUR
50 - 10000 pcs27.96 EUR
In stock

FEATURES

  • MCU: LPC2148 16/32 bit ARM7TDMI-S™ with 512K Bytes Program Flash, 42K Bytes RAM, USB 2.0, RTC, 10 bit ADC 2.44 uS, 2x UARTs, 2x I2C, SPI, 2x 32bit TIMERS, 6x PWM, 8x CCR, 1x DAC, WDT, 5V tolerant I/O, up to 60MHz operation
  • Standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG
  • Perfect solution for developing USB peripherials
  • USB connector, USB link LED
  • Status LED
  • Power supply LED
  • On board voltage regulator 3.3V with up to 800mA current
  • Single power supply: takes power from USB or extension socket pin
  • Power supply LED
  • Power supply filtering capacitor
  • RESET circuit
  • RESET button
  • 12 Mhz crystal on socket
  • 32768 Hz crystal and RTC backup battery connector
  • Extension headers for all uC ports
  • PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
  • Dimensions: 110 x 100 mm (4.3 x 3.9 ")
  • Distance between the Extension headers: 25.4 mm (1")
