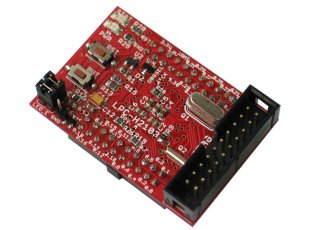

LPC2103 ARM7 microcontroller header board
Price22.95 EUR
10 - 49 pcs20.66 EUR
50 - 10000 pcs18.36 EUR
In stock

FEATURES

Microcontroller

  • MCU: LPC2103 ARM7TDMI-S 32-BIT, up to 70Mhz
  • FLASH: 32KB
  • RAM: 8 KB
  • UART: x2
  • SPI: 1 - 7.5 Mbit/sec.
  • SSP: 1 - 30 Mbit/sec
  • I2C: x2
  • ADC: x8 CH, 10-BIT, 400 Ksps
  • PWM: x12
  • TMR: x2 16-BIT, x2 32-BIT
  • RTC: 1
  • I/O: Up to 32, 5V tolerant
  • Operating temperature: -40+85C

Board

  • ARM JTAG 2x10 pin connector for debugging and programming with ARM-JTAG, ARM-USB-OCD or ARM-USB-TINY or any other ARM compatible JTAG
  • RESET circuit
  • RESET button
  • Status LED
  • User button
  • Power supply LED
  • On board voltage regulator 3.3V with up to 800mA current
  • Power supply filtering capacitor
  • Single power supply: +5VDC required
  • 14.7456 Mhz crystal allow easy communication setup (4x PLL = 58,9824 Mhz CPU clock)
  • Extension headers for all microcontroller ports + RST, DBGSEL and power supply
  • PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print

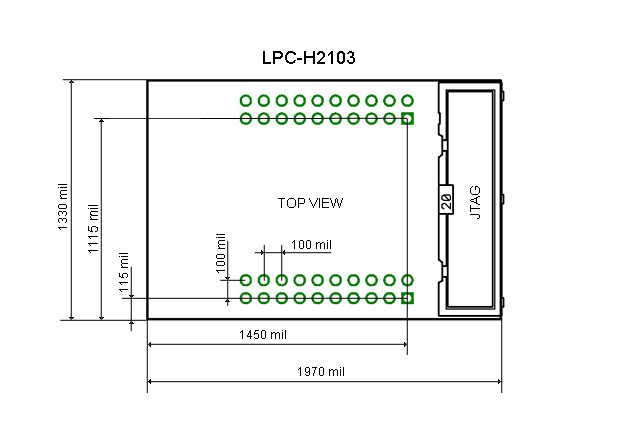

  • Dimensions: 51x20 mm (2.0x0.75")
  • Space between the pin rows: 15.24 mm (0.6")
