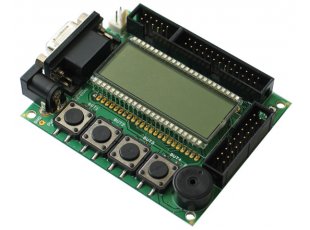

EM-32G880F128-STK
Energy Micro StarterKit development board
| Price | 26.95 EUR |
|---|---|
| 10 - 49 pcs | 24.26 EUR |
| 50 - 10000 pcs | 21.56 EUR |
FEATURES
- MCU: EFM32G880F128 32 bit Cortex-M3™ with 128K Bytes Program Flash, 16K Bytes RAM, 85 GPIO, 8 Channel DMA, 12 bit ADC 1Msps, 3xUART/SPI, 2x low power UART, I2C, 3x 16bit TIMERS, 3x2 CC-PWM, SSC, RTC, WDT, up to 32MHz operation
- LCD custom display, check here for the datasheet
- DEBUG connector with ARM 2x10 pin layout for programming/debugging.Note that Energy Micro supports only SWD and not normal JTAG.
- UEXT connector
- EXT extension connector
- RS232 connector and driver
- Power jack
- Lithium coin battery holder
- RESET circuit , RESET button
- Status LED
- 4 user buttons
- On board voltage regulator 3.3V with up to 800mA current
- Power supply LED
- Power supply filtering capacitor
- 16 Mhz crystal
- Extension headers for all uC ports + RST and power supply
- PCB: FR-4, 1.5 mm (0,062"), soldermask, silkscreen component print
- Dimensions: 77 x 64 mm (3 x 2.5")
- Distance between the headers: 25.4 mm (1")
HARDWARE
SOFTWARE
- EM-32G880F128-STK Demo project for for EW-ARM 5.50
- Original test project binaries
- OpenBLP BOOTLOADER - quick guide on how to install a very neat bootloader by Frank Voorburg
- EM-32G880F128-STK demo project FreeRTOS and FeaserOS for CrossWorks +ARM-USB-TINY-H + ARM-JTAG-SWD by Frank Voorburg
