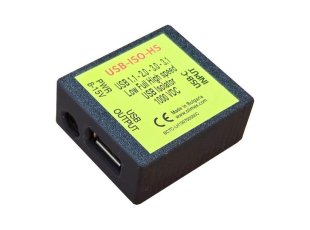

USB-ISO-HS
No image available
USB Low Full High speed isolator 1000VDC for protecting your PC or laptop while connecting USB devices wired to high voltages CE certified
| Price | 29.95 EUR |
|---|
USB-ISO-HS is High-Speed isolator and provides galvanic isolation between the USB host and device and protects the device from power shocks and avoid ground loops that can be very troublesome in audio.
It supports USB transfer modes Low (1.5Mbps), Full (12Mbps) and Hi-speed (480Mbps).
Hi-Speed 480Mbps are required by DACs that support higher than 96kHz/24bit sample rates, and also multi channel DACs.
High speed 480Mbps and also used by high speed JTAG adapters and Digital Storage Oscilloscopes.
USB-ISO-HS can provide up to 350mA to the USB device.If you need more you can apply external power supply to the PWR jack, note that your power supply will be connected directly to your USB device, so it should be galvano isolated also!!! In most of the cases you do not need to apply external power as 350mA are enough.
It supports USB transfer modes Low (1.5Mbps), Full (12Mbps) and Hi-speed (480Mbps).
Hi-Speed 480Mbps are required by DACs that support higher than 96kHz/24bit sample rates, and also multi channel DACs.
High speed 480Mbps and also used by high speed JTAG adapters and Digital Storage Oscilloscopes.
USB-ISO-HS can provide up to 350mA to the USB device.If you need more you can apply external power supply to the PWR jack, note that your power supply will be connected directly to your USB device, so it should be galvano isolated also!!! In most of the cases you do not need to apply external power as 350mA are enough.
FEATURES
- USB-C input
- USB-A output
- PWR jack for external power supply if needed
- Supports 1.1, 2.0, 3.0, 3.1 USB ports
- Supports Low (1.5Mbps), Full (12Mbps) and Hi-speed (480Mbps) mode by automatic detection
- Supports audio and other devices including high resolution 384kHz and DSD DACs, USB midi devices, USB mixers, USB microphones
- Provides 350mA to the connected USB device, it is sufficient for most devices.
- No driver required, no settings to configure
- Self powered, no external power needed
- Signal isolation: 1000VDC
- Voltage isolation: 1000VDC
- Plastic enclosure
- Size: 45x40x20 mm
DOCUMENTS
- USB-ISO-HS user manual
- USB-ISO-HS EU declaration of conformity
- USB-ISO-HS UKCA declaration of conformity
HARDWARE
- Sealed device in plastic enclosure with three connectors for connecting with USB-HOST, USB-DEVICE and an optional one for additional power supply
SOFTWARE
- No necessary, USB protocol is supported by hardware
