WCH-CH32V006EVT
Evaluation Development board for CH32V006 RISCV processor
| Price | 9.95 EUR |
|---|

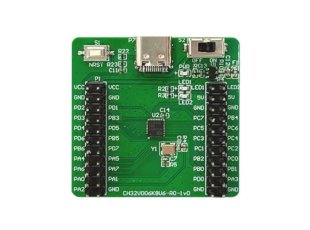

CH32V006EVT is an evaluation board for the RISC-V based CH32V006K8U6 SOC
The board is equipped with a power LED, reset button, USB port for power, and two user LEDs.
The QingKe V2C 32-bit RISC-V processor of the WCH CH32V006EVT is clocked by an external crystal and runs at 48 MHz.
The board is equipped with a power LED, reset button, USB port for power, and two user LEDs.
The QingKe V2C 32-bit RISC-V processor of the WCH CH32V006EVT is clocked by an external crystal and runs at 48 MHz.
FEATURES
- CH32V006K8U7 RISC-V MCU 48Mhz
- 64KB Flash
- 8KB SRAM
- UART x2
- I2C
- SPI
- ADC 12bit x8
- Touch sensor x8
- power supply 2.5V/3.3V/5V
- GPIO x31
- TIMERS 16bit x3
- Dimensions: 42x40mm
