BATTERY-LIPO1400mAh

BATTERY-LIPO1400mAh

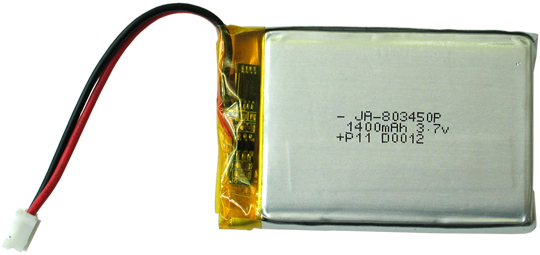

Rechargable LI-PO battery 3.7V 1400mAh with JST connector
Price5.95 EUR
10 - 49 pcs5.36 EUR
50 - 10000 pcs4.76 EUR
In Stock

This is a rechargeable Li-Po high discharge current battery with JST connector ready to plug to:
OLINUXINO, OLIMEXINO-328, OLIMEXINO-STM32, PIC32-PINGUINO, PIC32-PINGUINO-OTG, DUINOMITE and DUINOMITE-MEGA

The battery has overcharge and short circuit protection.

FEATURES

  • Charge voltage 4.2V, nominal voltage 3.7V, cut-off voltage 3.0V
  • Recommended charge current 280mA
  • Max charge current 700mA
  • Recommended discharge current 700mA
  • Max discharge current 1400mA
  • Impedance 60mOhm at 1KHz
  • Operating temperature: at charge 0-55C, at discharge -25C+60C
  • Capacity loss after 500 cycles full charge/discharge at 20C: 20%
  • Dimensions 50x34x8mm
