PIC-P14-20MHz

PIC-P14-20MHz
PIC-P14-20MHz PIC-P14-20MHz PIC-P14-20MHz
ICSP/ICD enabled 14 pin PIC microcontroller prototype board
Price12.95 EUR
10 - 49 pcs11.66 EUR
50 - 10000 pcs10.36 EUR
In stock

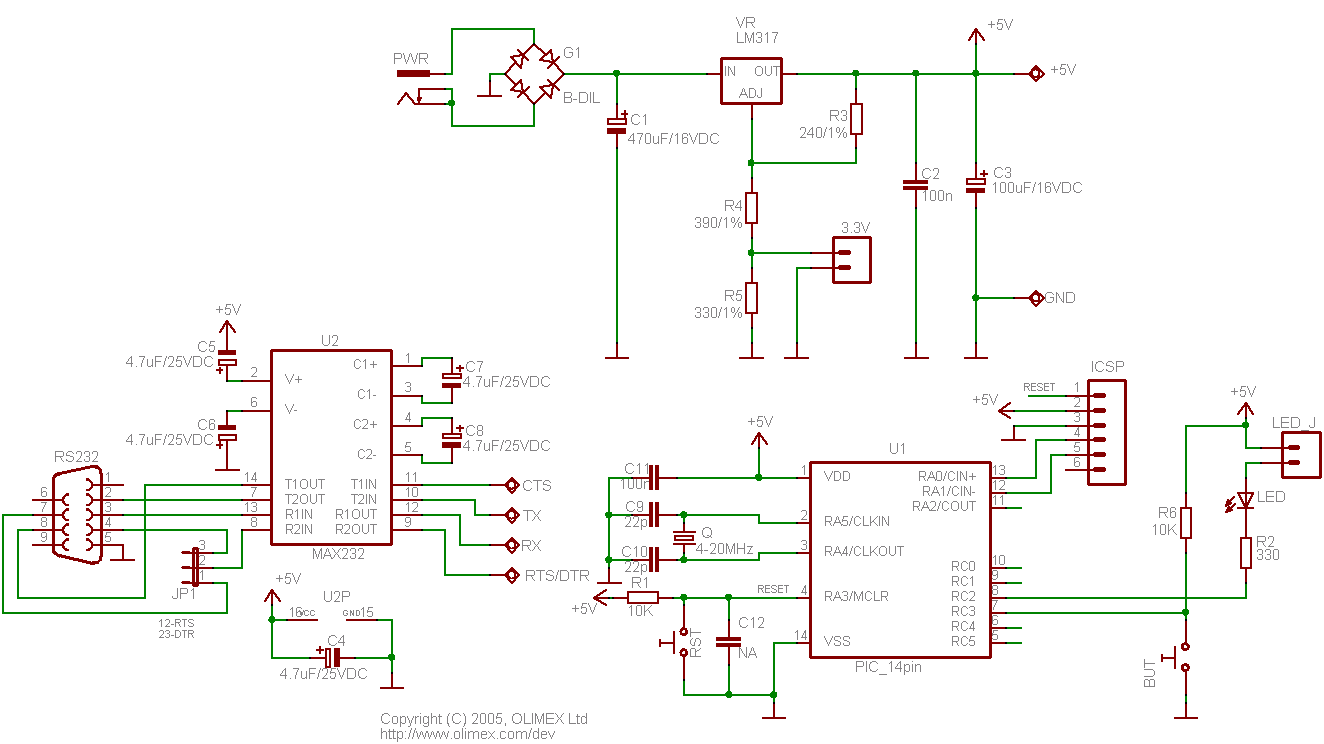

With this board you can develop and prototype with any of Microchip's 14 pin PIC microcontrollers. The RS232 driver on board allows an easy connection with a PC or other embedded hardware. The board has a User button and a status LED. The bridge rectifier allows this board to be powered with both AC and DC power supply adapters. PIC-P14 supports both 3V low power and normal 5V operation.

FEATURES

  • ICSP/ICD connector for programming with PIC-PG1,PIC-PG2, PIC-PG3 or PIC-MCP and debugging with PIC-ICD1 (* for the PICs with ICD support)
  • RS232 Tx, Rx interface with MAX232 IC on socket
  • DIL14 microcontroller socket
  • Quartz crystal 20Mhz
  • LED to RC2 through jumper
  • user Button
  • Reset button
  • Power plug-in jack
  • selectable +3.3V / +5V power supply voltage regulator
  • Extension slot on every uC pin
  • Gird 100 mils
  • GND bus
  • Vcc bus
  • Four mounting holes 3,3 mm (0,13")
  • FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
  • Dimensions 100x80 mm (3,9x3,15")

DOCUMENTS

SOFTWARE

  • Blink LED for PIC16F688 demo code (C source and HEX)
  • Button read for PIC16F688 demo code (C source and HEX)
  • RS232 send / receive for PIC16F688 demo code (C source and HEX)
