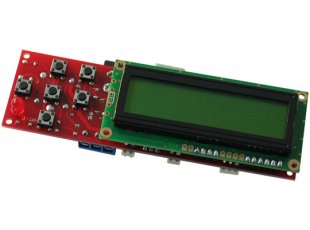

Development board for 28 pin PIC microcontroller
Price19.95 EUR
10 - 49 pcs17.96 EUR
50 - 10000 pcs15.96 EUR
In stock

FEATURES

  • ICSP/ICD connector for programming with PIC-MCP-USB, PIC-MCP or PIC-PG1, PIC-PG2, PIC-PG3, PIC-PG4 and debugging with PIC-ICD2, PIC-ICD2-POCKET, PIC-ICD2-TINY(* for the PICs with ICD support) for PIC16F87X there is low cost PIC-ICD1
  • Dallas touch button port
  • Frequency input
  • 0-10V and 0-5V ADC input with buffer OAMP
  • RS232 DB9 female connector
  • RS232 interface circuit with Tx, Rx signals
  • RS232 TTL levels output connector
  • Voltage regulator +5V, 78L05 and filtering capacitors
  • Quartz crystall oscilator circuit 20Mhz
  • DIL28 microcontroller socket
  • Relay with 10A/250VAC contacts
  • Buzzer
  • Status LED on RB4
  • Four mounting holes
  • Power plug-in jack
  • FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
  • Dimensions 120x36 mm (4,7x1,4")

DOCUMENTS

  • PIC-MT.pdf
  • Tutorial how to use PIC-MT with CC5X C compiler (in Spanish) written by our Chilian Distributor.

SOFTWARE

  • Blink LED for PIC16F876 demo code (C source and HEX)
  • Buzzer, relay, buttons for PIC16F876 demo code (C source and HEX)
  • LCD write demo code for PIC16F876 demo code (C source and HEX)
  • RS232 send receive for PIC16F876 demo code (C source and HEX)
