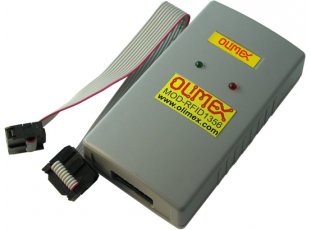

		MOD-RFID1356-BOX


														USB RFID reader for 13.56MHz TAGS with emulation of keyboard and RS232






	| Price | 19.95 EUR |
|---|---|
| 10 - 49 pcs | 18.95 EUR |
| 50 - 10000 pcs | 17.96 EUR |
FEATURES
- USB plug in module, works with every USB host which supports HID Keyboard and CDC
- Read RFID13.56 Mhz tags up to 5-15 cm distance
- MOD-RFID13.56 will not read MIFARE tags, it works with our ROM RFID 13.56 tags
- Works with OLinuXino boards
- Emulates USB keyboard (HID) or Virtual COM port (CDC)
- Dimensions: 50x20x5mm (2.0x0.8x0.2")
DOCUMENTS
SOFTWARE
- MOD-RFID1356 firmware upgrader revision 1.07 / 20.09.2012
- Example of MOD-RFID1356-BOX and OLIMEXINO-328 for Arduino IDE - check the note inside for additional info
- Example of MOD-RFID125-BOX and PIC32-PINGUINOs for Pinguino IDE - check the note inside for additional info
