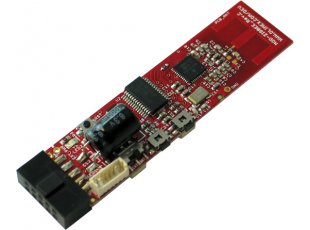

MOD-ZIGBEE-UEXT
ZIGBEE transciever module with MRF24J40 and PIC18F26K20
This item is OBSOLETE
FEATURES
- MRF24J40 + PIC18F26K20 with open source MiWi and Zigbee stack
- RF Transceiver – MRF24J40 IEEE 802.15.4™ Standard compliant 2.4 GHz RF transceiver
- UEXT connector to all boards with UEXT
- Mini ICSP connector
- On-board antenna
- On-board temperature sensor – TCN75A
- Option for external power supply through EXT_PWR
- EXT/BAT switch
- Reset circuit
- Two user buttons
- Two status LEDs
- RST button
- +3V lithium battery holder
- PCB: FR-4, 1.00 mm (0,039"), solder mask, silkscreen component print
- Dimensions: 70x20 mm (2.76x0.80")
DOCUMENTS
- You can check on the manual of MOD-ZIGBEE, the only difference is the presence of UEXT connector
HARDWARE
SOFTWARE
- MOD-ZIGBEE demo software powerpoint
- MOD-ZIGBEE demo software temperature remote sensors
- MOD-ZIGBEE and MOD-ZIGBEE-PIR with PIC32-PINGUINO movement sensor example (refer to the readme and the comments in the code for more info)
FAQ
- I receive funny characters on the terminal using MOD-ZIGBEE. What should I do?
- Set the terminal baud to 19200
- What is the difference between MOD-ZIGBEE, MOD-ZIGBEE-UEXT and MOD-ZIGBEE-PIR
- MOD-ZIGBEE is the base ZIGBEE module; the MOD-ZIGBEE-UEXT has UEXT which allows easier connection to Olimex host boards; the MOD-ZIGBEE-PIR has UEXT and also a PIR (passive infra red) sensor
