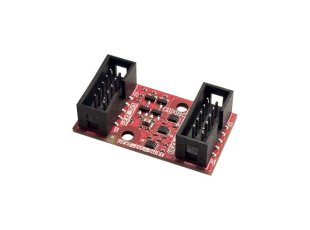

UEXT-LVL-SHIFT
UEXT to UEXT level shifter to interface boards with 1.65 to 5.5V voltage levels
| Price | 4.95 EUR |
|---|---|
| 10 - 49 pcs | 4.70 EUR |
| 50 - 10000 pcs | 4.46 EUR |
UEXT interface is with 3.3V levels. Sometimes you need to interface sensors or other boards with different voltage levels.
This is where UEXT-LVL-SHIFT comes handy. It has voltage level shifters which allow standard UEXT connector to interface boards or sensors with voltage levels from 1.65V to 5.5V.
All UEXT signals are included UART, SPI, I2C.
The target UEXT connector should have the target voltage provided on the UEXT connector.
This is where UEXT-LVL-SHIFT comes handy. It has voltage level shifters which allow standard UEXT connector to interface boards or sensors with voltage levels from 1.65V to 5.5V.
All UEXT signals are included UART, SPI, I2C.
The target UEXT connector should have the target voltage provided on the UEXT connector.
FEATURES
- Two UEXT connectors
- Full signal level shifters
- I2C speed up to 1Mbps
- SPI and UART signals maximum rate: 75Mbps at 1.8V, 180Mbps at 2.5V, 420Mbps at 5V
- Can interface 1.65 to 5.5V targets
- Dimensions: 40x22 mm
DOCUMENTS
- UEXT-LVL-SHIFT EU declaration of conformity
- UEXT-LVL-SHIFT UKCA declaration of conformity
HARDWARE
- UEXT-LVL-SHIFT schematic in pdf format
- UEXT-LVL-SHIFT KiCAD sources
