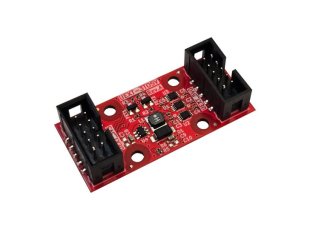

UEXT-3TO5V
UEXT with step up converter and level shifters from 3V to 5V
| Price | 3.95 EUR |
|---|---|
| 10 - 49 pcs | 3.75 EUR |
| 50 - 10000 pcs | 3.56 EUR |
This converter is very useful board when you have to work with 5V sensors and modules.
UEXT connector is with 3.3V levels. When you need to interface 5V devices and sensors there are two problems - to power them with 5V and to may read and write with 5V levels. This is what UEXT-3TO5V does, it have step up converter which converts the 3.3V power supply to 5V and there are level shifters from 3V to 5V.
UEXT-3TO5V incudes one IDC10-15CM cable.
UEXT connector is with 3.3V levels. When you need to interface 5V devices and sensors there are two problems - to power them with 5V and to may read and write with 5V levels. This is what UEXT-3TO5V does, it have step up converter which converts the 3.3V power supply to 5V and there are level shifters from 3V to 5V.
UEXT-3TO5V incudes one IDC10-15CM cable.
FEATURES
- Two UEXT connectors one for 3.3V host and one for the 5V sensors/devices
- Step up convertor from 3.3V to 5V
- level shifters for the UART, I2C, SPI interfaces
- IDC10-15cm cable
- Dimensions 50x22mm
DOCUMENTS
- UEXT-3TO5V user manual
- UEXT-3TO5V EU declaration of conformity
- UEXT-3TO5V EKCA declaration of conformity
