RP2040-PICO30

RP2040-PICO30 - Open Source Hardware Board
RP2040-PICO30 - Open Source Hardware Board RP2040-PICO30 - Open Source Hardware Board RP2040-PICO30 - Open Source Hardware Board
RP2040-PICO30 is RP2040-PICO with 30 GPIO EXPOSED

Select Product Variant

  • RP2040-PICO30
  • RP2040-PICO30-16
  • RP2040-PICO30U
  • RP2040-PICO30U-16
Price4.70 EUR
In Stock

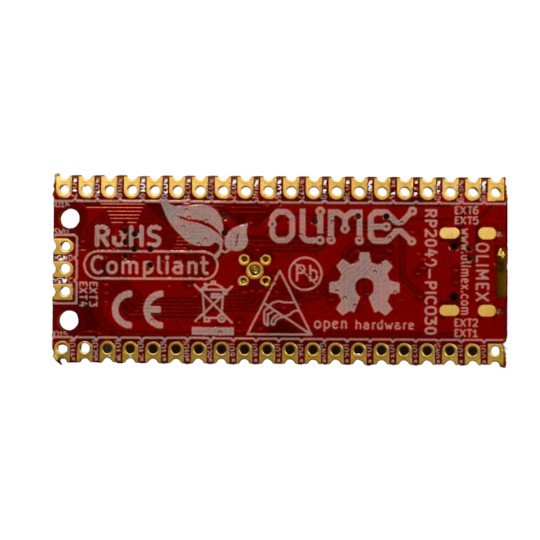

RP2040-PICO30 is OSHW certified Open Source Hardware with UID BG0000103

RP2040-PICO30 is re-design of the popular Raspberry Pi Pico (RP2040) but exposes all 30 GPIOs
RP2040-PICO30 comes with 2MB flash memory as original RP2040-PICO, but there is also variant RP2040-PICO30-16 with the maximum possible flash memory for RP2040 - 16MB.

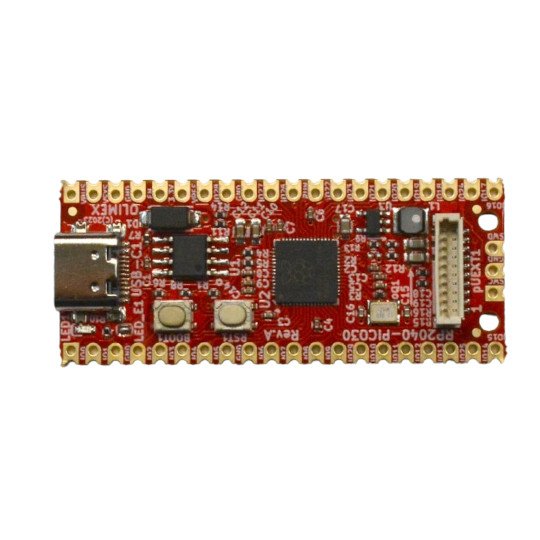

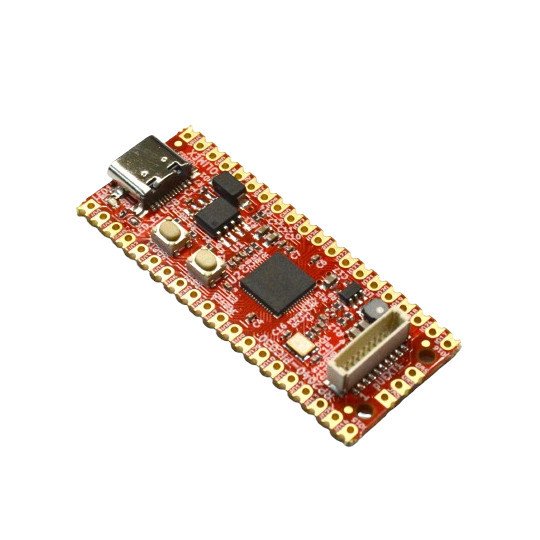

RP2040-PICO30U has also mounted UEXT connector and LED. The LED is not connected to any port by default, but can be connected to GPIO25 as in the original RP2040-PICO via solder jumper. There are two 2.2K pullup resistors options to the SCL and SDL ports (GPIO16 and GPIO17).

FEATURES

  • RP2040 CortexM0 microcontroller
  • RP2040-PICO pinout and dimentions
  • SY8089A 3.3V 2A (3A peak) DCDC power supply
  • 30 GPIOs available to the user
  • USB-C connector
  • Boot button
  • RESET button
  • 2MB or 16MB flash memory (16MB in "xxx-16" version)
  • Optional UEXT connector (U version)
  • Optional status LED (U version)
  • Dimensions 51 x 21 mm

SOFTWARE

  • RP2040 C-SDK
  • RP2040 MycroPython SDK
