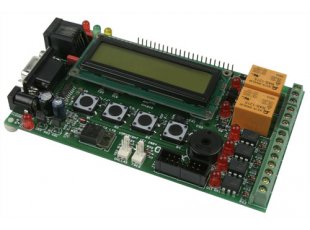

MSP430-EASYWEB-2 - Open Source Hardware Board
TCP/IP board with MPS430F149 based on Andreas Dannenberg easyWeb TCP/IP
Price32.95 EUR
10 - 49 pcs29.66 EUR
50 - 10000 pcs26.36 EUR
Out of stock


  • MSP430F149 running Andreas' open source TCPIP stack
  • CS8900 LAN controller + LAN transformer and RJ45 LAN connector
  • Three status LEDs for the LAN
  • One general purpose LED for the easyWeb2
  • Two 10A/240VAC relay outputs
  • Four optocoupled inputs
  • Four push button switches
  • RS232 output
  • Buzzer
  • LCD 16x2 display
  • 24LC515 (64K eeprom memory for web data storage)
  • Dallas iButton interface for temperature RTC and etc iButton measurements
  • Frequency input
  • Extension port for the ADC port
  • Extension port with the power supply
  • JTAG connector
  • 8Mhz oscillator crystal
  • Dimensions: 138x83 mm (5.45x3.25")
