MSP430-169LCD

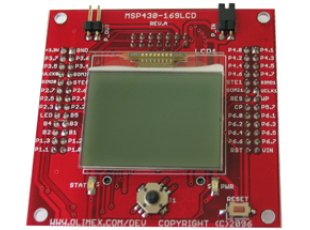

MPS430F169 starterkit development board with graphics LCD, SD/MMC CARD, Joystick
| Price | 24.95 EUR |
|---|---|
| 10 - 49 pcs | 22.46 EUR |
| 50 - 10000 pcs | 19.96 EUR |
FEATURES
- MCU: MSP430F169 with 60K Bytes Program Flash, 256 Bytes data Flash, 2K Bytes RAM
- NOKIA 3310 LCD 84x48 pixels black & white
- Joystick with 4 directions and a push button function
- SD/MMC card connector
- Two LEDs: status and power
- Reset switch
- JTAG connector
- 32 768 Hz oscillator crystal
- 8Mhz crystal oscillator
- UEXT connector (added in board revision B)
- Power supply voltage regulators and filtering capacitor
- Extension headers for all uC pins
- PCB: FR-4, 1.5 mm(0,062"), red soldermask, white silkscreen component print

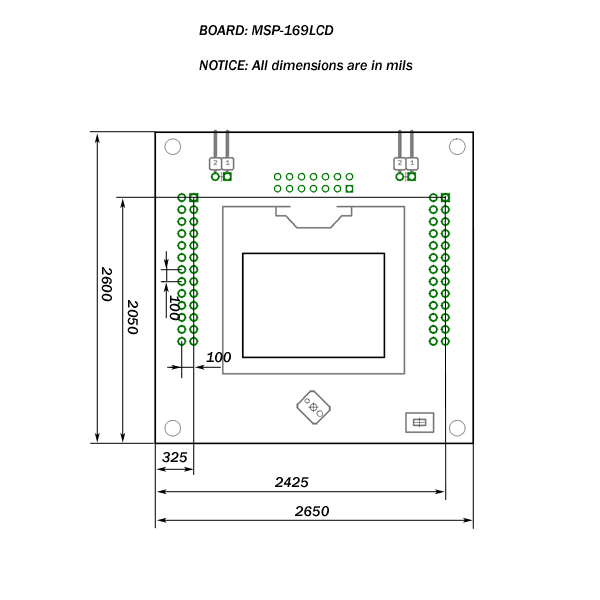

- Dimensions: 67x66 mm (2.65x2.6")
DOCUMENTS
HARDWARE
- MSP430-169LCD rev B schematic
- MSP JTAG connector (top view)
SOFTWARE
- Demo code for MSP430-169LCD with LCD display drive, Joystick read, SD/MMC card read/write code
