MSP430-1121STK2

MSP430-1121STK2
MSP430-1121STK2 MSP430-1121STK2

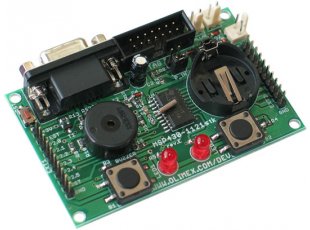

MPS430F1121 starterkit development board
Price13.95 EUR
10 - 49 pcs12.56 EUR
50 - 10000 pcs11.16 EUR
In stock

FEATURES

  • MCU: MSP430F1121A with 4K Bytes Program Flash, 256 Bytes data Flash, 256 Bytes RAM
  • JTAG connector
  • RS232 connector , RS232 interface circuit with Tx, Rx signals
  • Dallas touch button port
  • Frequency input
  • Two red LEDs
  • Two user buttons
  • RESET button
  • Buzzer s
  • Connector for external 3V battery
  • 3V li-ion battery holder on top
  • 32 768 Hz oscillator crystal
  • TEST pin pull-down
  • RST/NMI pin pull-up
  • Power supply filtering capacitor
  • Extension headers for each uC pin
  • PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
  • Dimensions: 80x50 mm (3.15x1.96")
