MSP430-P1611

MSP430-P1611
MSP430-P1611 MSP430-P1611 MSP430-P1611
MPS430F1611 development board
Price29.95 EUR
10 - 49 pcs26.96 EUR
50 - 10000 pcs23.96 EUR
In Stock

FEATURES

  • MCU: MSP430F1611 with 48K Bytes Program Flash, 256 Bytes data Flash, 10K Bytes RAM
  • JTAG connector
  • RS232 driver + DB9 connector
  • User button
  • Power supply LED
  • User status LED
  • 32 768 Hz oscillator crystal
  • Optional high frequency crystal (socket)
  • RESET button
  • RST/NMI pin pull-up
  • UEXT connector for UEXT modules
  • 3.7V Lithium-polymer battery connector
  • External power supply jack for AC or DC power supply
  • Voltage regulator + power supply filtering capacitor
  • Extension headers for each uC pin
  • Prototype area with 0.1" step, Vcc + GND bus
  • PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print

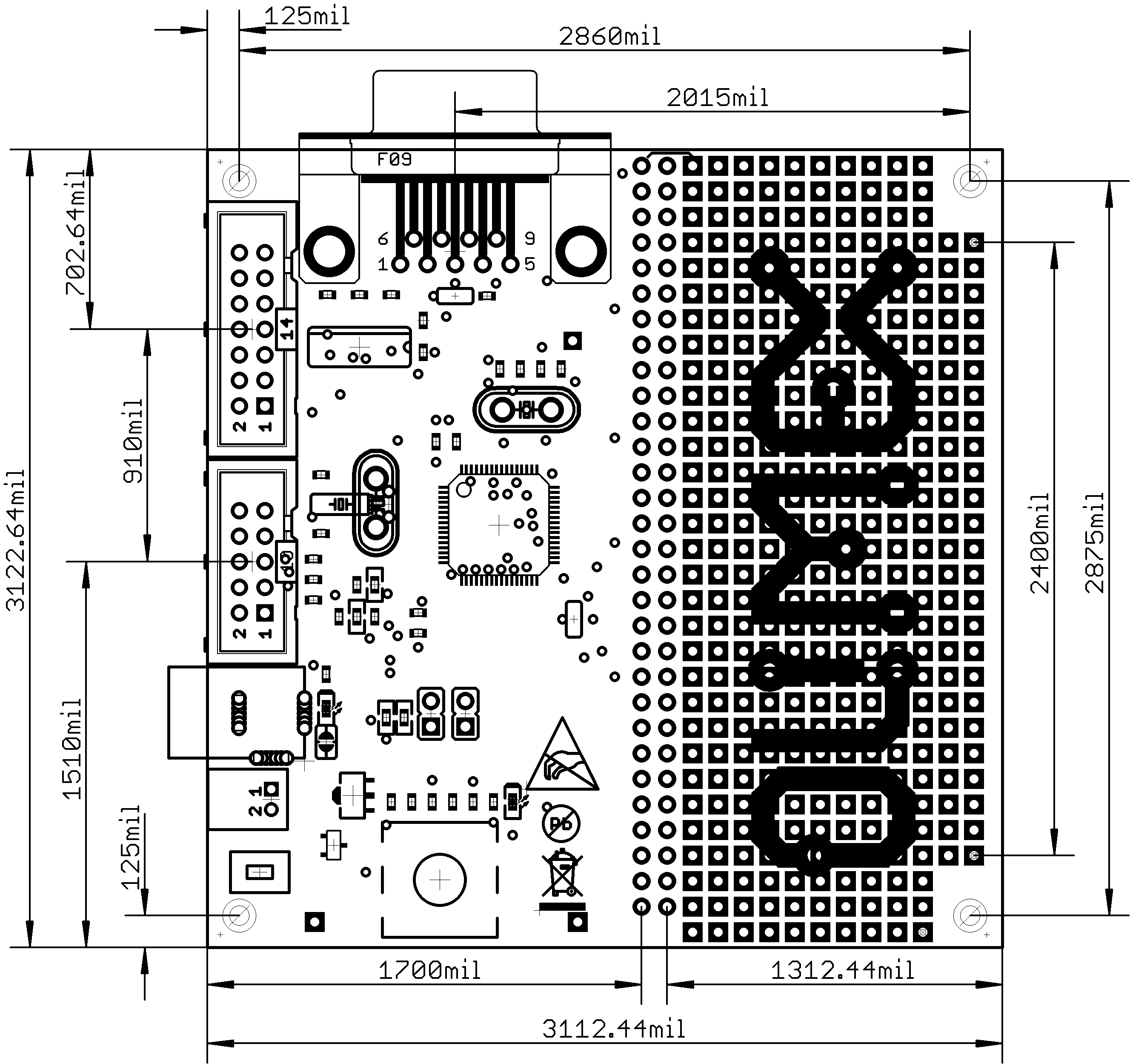

  • Dimensions: ~(80x80)mm; (3.1x3.1)"
