MSP430-JTAG-RF

MSP430-JTAG-RF
MSP430-JTAG-RF MSP430-JTAG-RF
World's first wireless USB JTAG for programming and flash emulation
Price99.95 EUR
10 - 49 pcs89.96 EUR
50 - 10000 pcs79.96 EUR
In stock

NOTE!!! The firmware for MSP430-JTAG-RF is not maintained anymore due to hardware restraints. Version 1.0.4.2 is the last version fro the drivers. The product is not recommended for new designs! Please consider MSP430-JTAG-TINY-V2 or MSP430-JTAG-ISO-MK2.

FEATURES

  • Programs all MSP430Fxxx flash microcontrollers
  • Ultra fast programming 10KB/s faster several times than TI-USB-FET
  • Uses TI standard 2x7 pin JTAG connector
  • Spy-By-Wire support for the newest TI MSP430 devices
  • JTAG plug board works up to 100 meter from the computer with the USB dongle

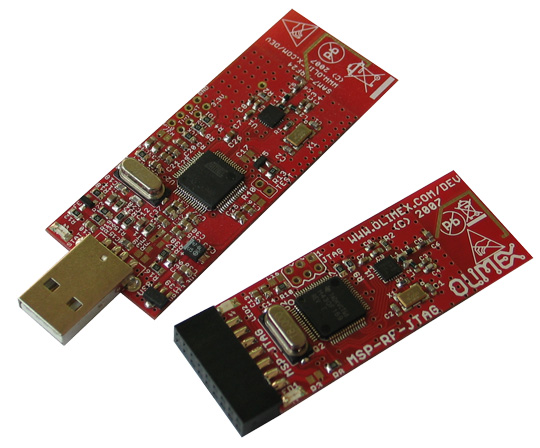

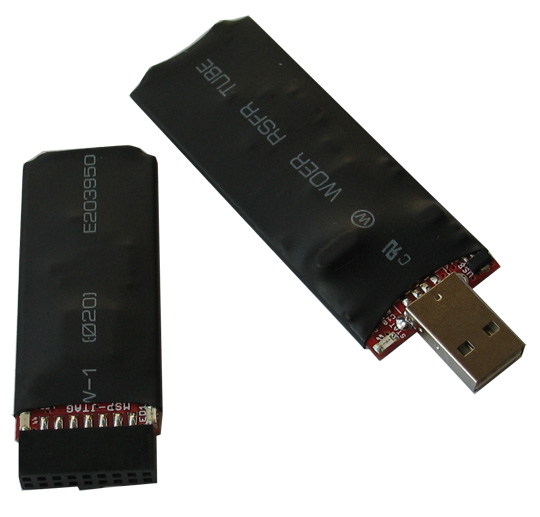

  • Two parts: USB-to-RF dongle you stick at your PC USB port and RF-to-JTAG plug-in board which you plug to your target JTAG connector
  • Perfectly (air) isolated - can work even if the target is physically separated from the debug computer i.e. in hermetically closed rooms with a harsh environment etc.
  • MSP430.dll makes it compatible with all existing software which works with TI-USB-FET (emulates TI-USB-FET)
  • Compatible with IAR Kickstart software for programming, real time emulation, debugging, step by step program execution, breakpoints, memory dump etc everything all high priced emulators do
  • With IAR Kickstart you can write in assembler unlimited code size and to write in C with 2K limit for all MSP430 microcontrollers
  • Works with free GCC C compiler and Insight MSP430 toolchain and debugger
  • Dimensions USB dongle 20x40 mm (0.8x1.6") JTAG-plug 30x40 mm (2.2x1.6")
