MSP430-HG2231

MSP430-HG2231

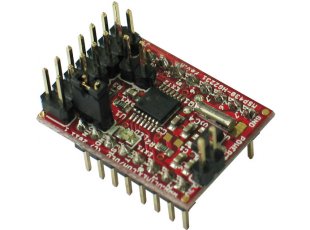

MPS430FG2231 header board
Price6.95 EUR
10 - 49 pcs6.26 EUR
50 - 10000 pcs5.56 EUR
In stock

FEATURES

  • MCU: MSP430FG2231 with 2K Bytes Program Flash, 256 Bytes RAM
  • 3.3V voltage regulator
  • External power connector
  • Status LED
  • JTAG connector
  • JTAG Power_In and Power_Out jumpers
  • 32 768 Hz oscillator crystal
  • TEST pin pull-down
  • RST/NMI pin pull-up
  • Power supply filtering capacitor
  • Extension headers for each uC pin
  • PCB: FR-4, 1.5 mm (0,062"), soldermask, silkscreen component print
  • Dimensions: 27x20 mm (1.06x0.78")
