MSP430-H449

MSP430-H449
MPS430F449 header board
Price19.95 EUR
10 - 49 pcs17.96 EUR
50 - 10000 pcs15.96 EUR
In stock

FEATURES

  • MCU: MSP430F449 with 60K Bytes Program Flash, 256 Bytes data Flash, 2K Bytes RAM
  • JTAG connector
  • JTAG Power_In and Power_Out jumpers
  • 32 768 Hz oscillator crystal
  • 8Mhz crystall oscillator (works only when power supply +3.6V)
  • TEST pin pull-down
  • RST/NMI pin pull-up
  • Power supply filtering capacitor
  • Extension headers for each uC pin
  • PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print

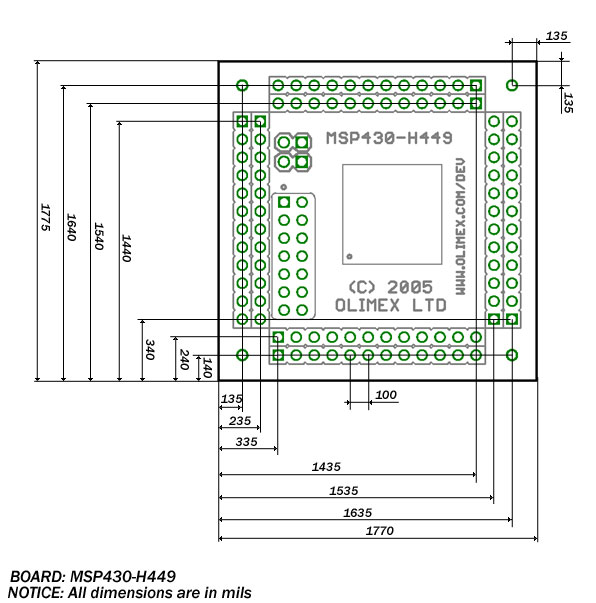

  • Dimensions: 45x45 mm (1.8x1.8")
  • Space between the pin rows: 43.18 mm (1.7")
