MSP430-H123

MSP430-H123

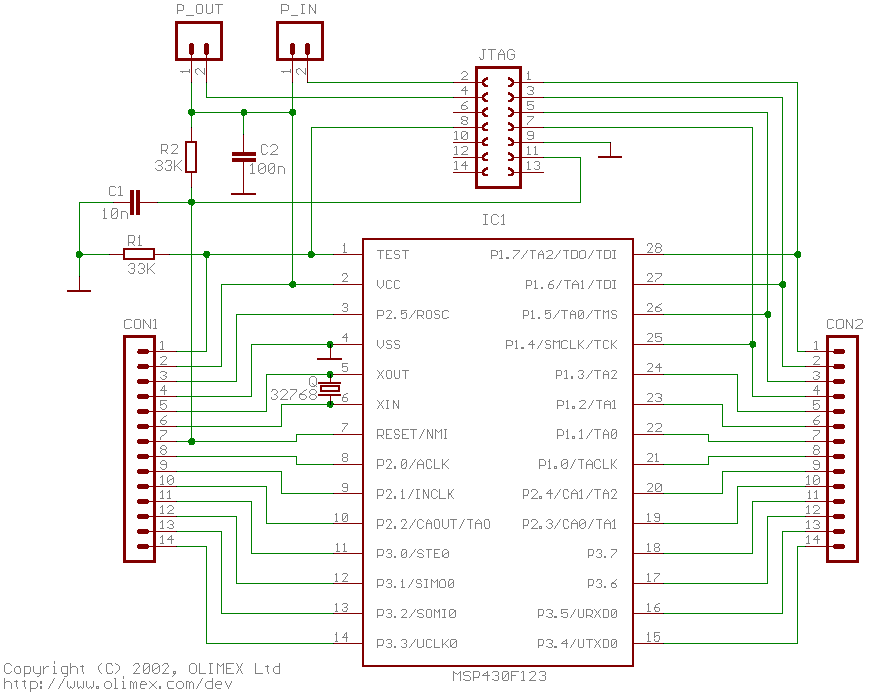

MPS430F123 header board
Price9.95 EUR
10 - 49 pcs8.96 EUR
50 - 10000 pcs7.96 EUR
In stock

FEATURES

  • MCU: MSP430F123 with 8K Bytes Program Flash, 256 Bytes data Flash, 256 Bytes RAM, hardware UART
  • JTAG connector
  • JTAG Power_In and Power_Out jumpers
  • 32 768 Hz oscillator crystal
  • TEST pin pull-down
  • RST/NMI pin pull-up
  • Power supply filtering capacitor
  • Extension headers for each uC pin
  • PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
  • Dimensions: 43x20 mm (1.7x0.78")
  • Space between pin rows 15.24 mm (0.6")
